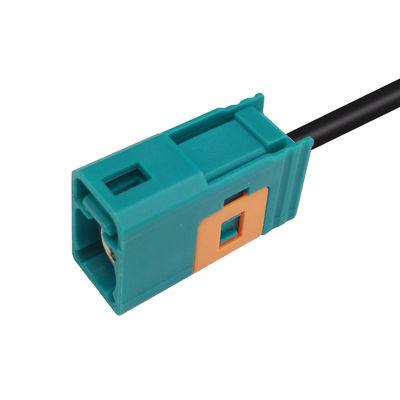

RF Coaxial FAKRA Cable Connector 50 Ohm Code Z For RG174 Cable

  • RF Coaxial FAKRA Cable Connector 50 Ohm Code Z For RG174 Cable
Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type Cable Mount Code Z Code
Suitable Cable Type RG174,RG316,RG178,RG58,etc Application RF, Automotive
MOQ 20 PCS Business Type OEM&ODM
Highlight

Coaxial FAKRA Cable Connector

,

50 Ohm FAKRA Cable Connector

,

RG174 Cable FAKRA Coax Connector
Leave a Message
Product Description

RF Coaxial Fakra Cable Connector 50 Ohm Code Z For RG174 Cable



Product description:

FAKRA connectors are specially designed for automotive applications. High-performance, cost-effective RF connectors FAKRA connectors feature good shielding, good signal stability, fast transmission rate, high cost performance and small size, which meet the special mechanical and environmental requirements of the automotive industry.



Main Feature:

1. Rich variety of mechanical and color codes
2. Available for a wide range of coaxial cables such as RG-58, RF-174, RG-316, RG-178 and other micro cables
3. Numerous connector configurations, such as right angle and right angle of the cable, as well as edge launch and PCB design
4. Reliable and durable.
5. Meet the strict requirements of automotive factories.
6.MOQ:20PCS



Applications:

1.Automobile
2.Medical equipment
3.Other industries that use high volume SMB cable assemblies
4.Surround view
5.Lane Assist
6.GPS/GNSS
7.Digital Audio (DAB)



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



FAKRA

Electrical

Data

 lmpedance 50 Ω
Frequency range (depends on cable), connector, assembling, testing DC up to 6 GHz
Return loss ≥ 18 dB
Insulation resistance ≥1x 1 GΩ
Center contact resistance ≤5mΩ
Outer contact resistance ≤5mΩ
Test voltage 750V DC
Working voltage 60V DC
Contact current (depending on cable size, connector and housing) ≤4A DC
RF-leakage ≥65 dB

Mechanical

Data

 Mating cycles (standard) ≥25
Mating cycles (waterproof) ≥5
Engagernent force (single, standard) ≤25N
Engagerment force (waterproof) ≤45N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥60 N

Environmental

Data

 Temperature range -40°C-+105°C



FAKRA Coding:

RF Coaxial FAKRA Cable Connector 50 Ohm Code Z For RG174 Cable 0

FAQ:

1.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


2.Q: Can your company accept customize?
A: Welcome OEM & ODM.



3.Q:How can l get the FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
