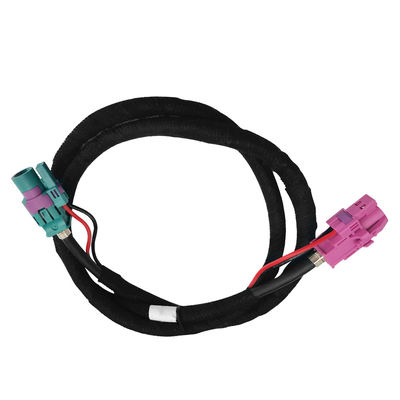

Stable Practical HSD GPS Cable 4+2Pin Code Z To H Plug For Car Antenna

  • Stable Practical HSD GPS Cable 4+2Pin Code Z To H Plug For Car Antenna
  • Stable Practical HSD GPS Cable 4+2Pin Code Z To H Plug For Car Antenna
Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 Code Z,Waterblue Color Connector 2 Code H,Heather Violet Color
Business Type OEM&ODM MOQ 20 PCS
Impendance 100 Ohm Temperature Range −40°C~+105°C
Highlight

Stable HSD GPS Cable

,

Practical HSD GPS Cable

,

Car HSD Antenna Cable
Leave a Message
Product Description

HSD Cable Assembly 4+2Pin Code Z To H Plug For Car Gps Antenna



Product description:

The HSD +2, +4, +8 and up to 6 GHz high-speed data connector system is typically used in automotive applications. The ability to prevent crosstalk and external interference makes the HSD cable and PCB connector system ideal for LVDS cameras, USB connections, Ethernet (IEEE 802.3) and FireWire (IEEE 1394) applications.



Main Feature:

1. Excellent data transmission

2. HSD +2, +4, +8 high speed data connector systems are typically used in automotive applications

3. Protection against crosstalk and other external sources of interference
4. 100 Ohm impedance
5. Primary and secondary locking mechanisms ensure the highest interconnect security

6. MOQ:20 PCS



Applications:

1.Infotainment system
2.Telematics application
3.GVIF video transmission
4.IEE 1394, USB, Ethernet data link
5. High-speed data communication system
6. Driver assistance system



Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

Stable Practical HSD GPS Cable 4+2Pin Code Z To H Plug For Car Antenna 0Stable Practical HSD GPS Cable 4+2Pin Code Z To H Plug For Car Antenna 1



FAQ:

1.Do you provide samples?
A: Yes, we can provide samples, but you need to pay the shipping cost.

2. Q: Do you accept customizable orders?
A: Yes, we accept OEM and ODM.

3. What are your payment terms?
A: We accept L/C, T/T, Western Union.

4. Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
