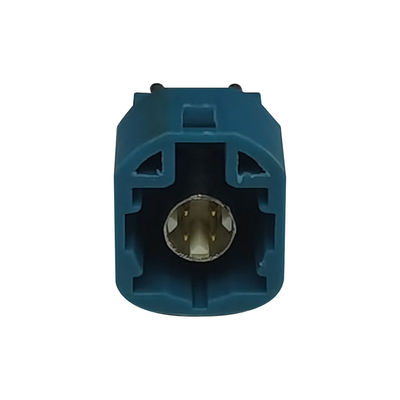

FAKRA HSD LVDS 4Pin Connector -40℃ To +105℃ OEM ODM Accepted
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Voltage | 60 V Rms | Number Of Positions | 4Pin |
|---|---|---|---|
| Mounting Type | PCB Mount | Code | Z-code |
| Orientation | Straight Type | Frequency Range | DC To 6 GHz |
| Impedance | 100Ω | Applications | LVDS Camera, USB, And IEEE 1394 |
Product Description
Product Description:
The High-Speed Digital (HSD) connector is a fundamental innovation within the automotive sector, designed especially to support high-performance digital systems. This singular connector has unique features that are indispensable in modern automotive electronics and sets itself apart by seamlessly integrating with many applications and protocols.
The HSD connector stands out due to its innovative approach of employing a streamlined approach utilizing a singular pair of data wires, unshielded or shielded twisted pairs. Its versatility and superiority in providing advantages, such as smooth implementation of varying complex systems, makes it reigning champion, especially in the automotive industry.
Here, we will look closer into the wonders of the High-Speed Digital connector and its multitude of uses within automotive technology. It is certain that its versatility is undeniable, having countless applications in the automotive industry.
Features:
- Optimized Data Transmission: Efficient data transfer with a single pair of wires.
- Interference Resilience: Strong protection against crosstalk and external interference.
- Secure Locking: Reliable connection with primary and secondary locks.
- Efficient Crimping: Easy and effective crimp connections for usability.
- Robust Cable Grip: Ensures a stable and secure connection.
- Advanced Coding: Prevents misconnections through effective coding.
- Seamless Integration: Effortless integration with various automotive electronics.
- Enhanced Infotainment: Elevates the in-car entertainment experience.
Technical Parameters:
| Parameters | Values |
|---|---|
| FAKRA HSD Connector | Automotive |
| Number of Positions | 4Pin |
| Operating Temperature | -40℃ To +105℃ |
| Working voltage | 60 V Rms |
| Impedance | 100Ω |
| Code | Z-code |
| Orientation | Straight Type |
| Frequency range | DC To 6 GHz |
| Mounting Type | PCB Mount |
| Applications | LVDS Camera, USB, And IEEE 1394 |
| Services | OEM ODM Accept |
Applications:
- USB Connectivity: HSD enables USB data transfer and communication in vehicles.
- LVDS Speed: Vital for high-speed data transmission in LVDS systems.
- IEEE 1394 (Firewire): Key for device connectivity and data transfer.
- GVIF Functionality: Cornerstone for high-speed video data transmission in GVIF.
- Infotainment Integration: Seamlessly integrates into automotive infotainment for a superior experience.
- Efficient Networks: Enables efficient operation of digital symmetrical networks.
- Streamlined Electronics: Widely used in automotive electronics for streamlined operations.
HSD Coding:
Customization:
FAKRA HSD Connector – LEADSIGN
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
If you have any questions or need assistance with your FAKRA HSD Connector, please contact us at info@leadsignauto.com.
FAQ:
1.Q:How can l get the automotive FAKRA/HSD/MINI FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.
3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
