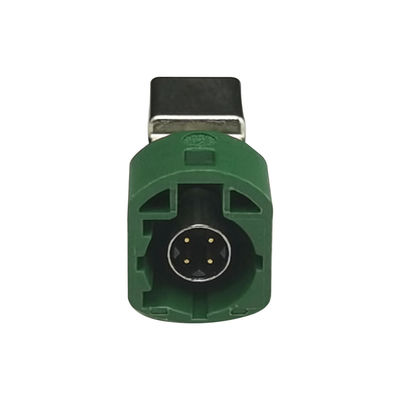

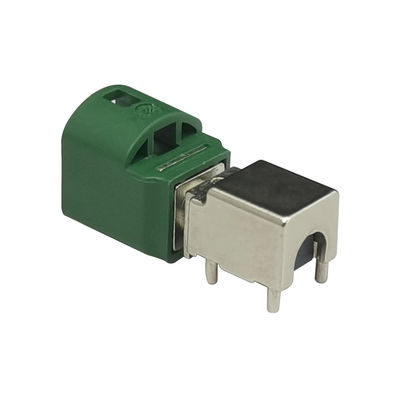

Automotive FAKRA HSD LVDS 4Pin E-Code Connector Right Angle Type

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -40℃ To +105℃ Number Of Positions 4Pin
Working Voltage 60 V Rms Code E-code
Color Leaf Green Color Frequency Range DC To 6 GHz
Applications LVDS Camera, USB, And IEEE 1394 MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD Connectors are essential for high-speed data transmission in the automotive industry. They enable real-time data exchange in various automotive systems, such as infotainment, navigation, cameras, and radar. Known for their durability and reliability, they can withstand harsh conditions. These connectors have versatile applications in passenger cars and commercial trucks, supporting advanced automotive technologies. Overall, HSD Connectors play a crucial role in modern automotive electronics, offering fast data transfer and versatility.

Features:

  • High-speed Data Transmission: Swift, reliable, versatile, and suitable for real-time information and high-definition media.
  • Anti-interference: Ensures stability in electromagnetic environments.
  • Reliability: Works consistently under harsh conditions.
  • High Bandwidth: Supports audio, video, and vehicle communications.
  • Space-saving: Compact design fits limited vehicle space.
  • Durability: Handles vibration and temperature changes well.
  • Easy Installation: Simplified connectivity for maintenance and installation.
  • Energy Efficiency: Contributes to fuel efficiency.
  • Versatility: Suits various automotive systems.

Technical Parameters:

Product Name: FAKRA HSD Connector
Mounting Type: PCB Mount
Color: Leaf Green Color
Number of Positions: 4Pin
Impedance: 100Ω
Working Voltage: 60 V Rms
Orientation: Right Angle Type
Operating Temperature: -40℃ To +105℃
Applications: LVDS Camera, USB, And IEEE 1394
Services: OEM ODM Accept



Applications:

  • High Definition Media System: Provides high-quality audio and video for in-vehicle entertainment.
  • Navigation System: Offers real-time map updates and enhanced navigation capabilities.
  • Reversing Camera: Aids drivers with visual assistance while reversing.
  • Radar System: Supports advanced driver assistance systems with radar sensors.
  • Vehicle Communication: Enables real-time communication, including vehicle-to-vehicle (V2V) communication.
  • Driver Assistance Systems: Use sensors and cameras for safer driving and autonomous functions.
  • Vehicle Diagnostics: Transmits vehicle performance data for maintenance and remote diagnostics.
  • Vehicle Control Module: Supports engine control, braking, and chassis control.
  • Vehicle Infotainment System: Provides multimedia content and internet connectivity for an entertaining driving experience.
  • High-speed Data Bus: Facilitates efficient data transmission between sensors and control systems within the vehicle, enhancing intelligent vehicle functions.



HSD Coding:

Automotive FAKRA HSD LVDS 4Pin E-Code Connector Right Angle Type 0Automotive FAKRA HSD LVDS 4Pin E-Code Connector Right Angle Type 1



Customization:

LEADSIGN FAKRA HSD Connector Customization Service

We accept OEM & ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution.



Our FAKRA HSD LVDS 4Pin Connector is designed for automotive use, providing a reliable and secure connection for your vehicle's systems. With our customization service, you can choose the perfect connector for your specific needs.



For more information and to place an order, please contact our sales team. We look forward to working with you!
