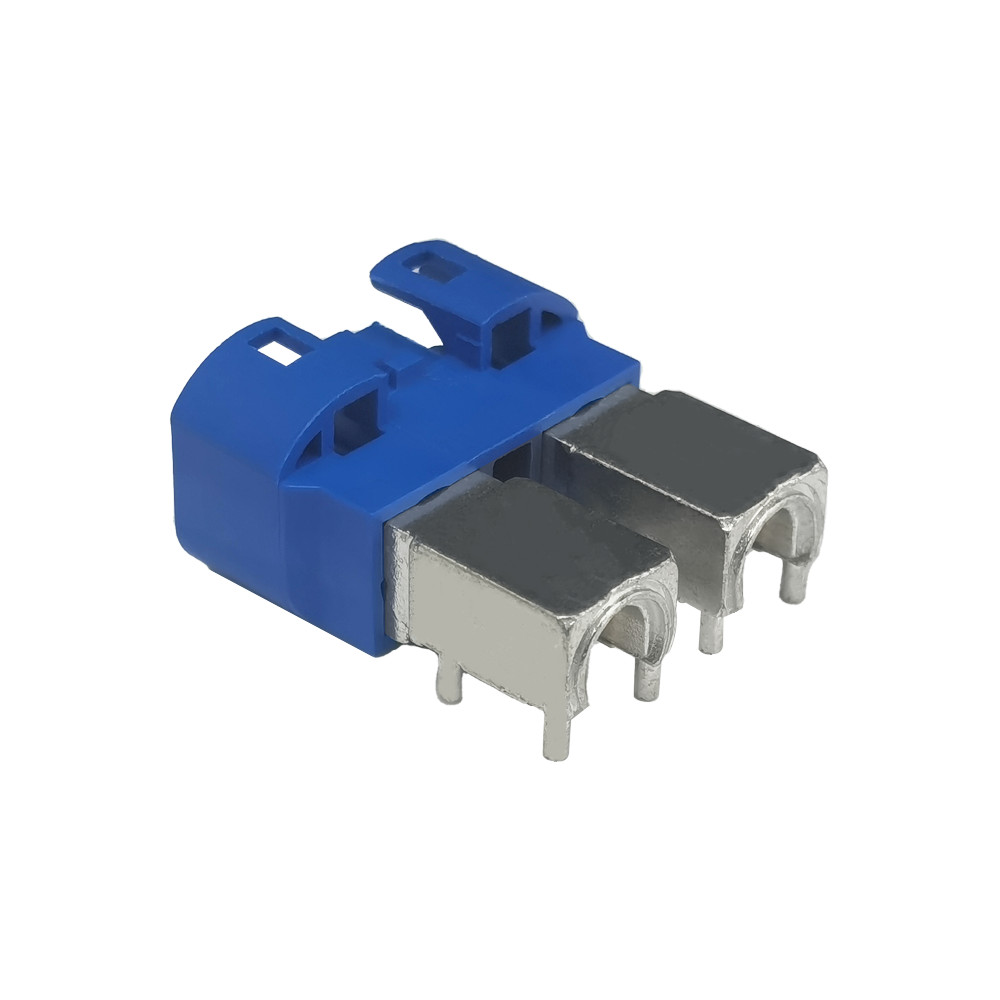

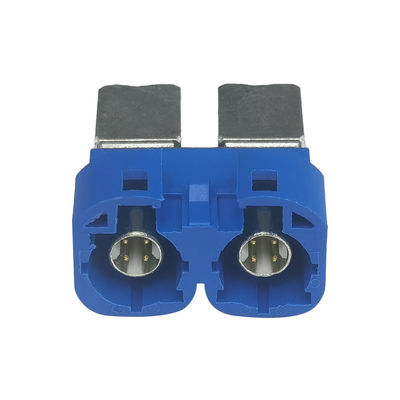

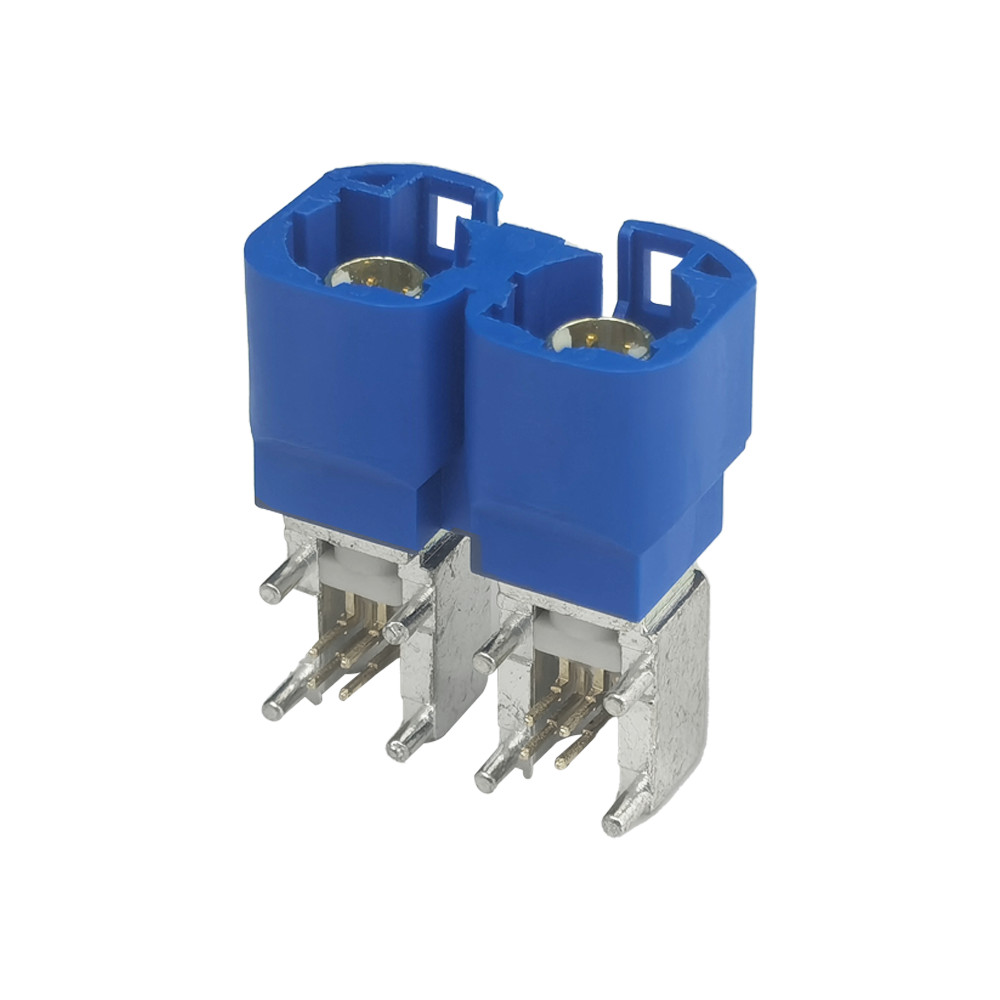

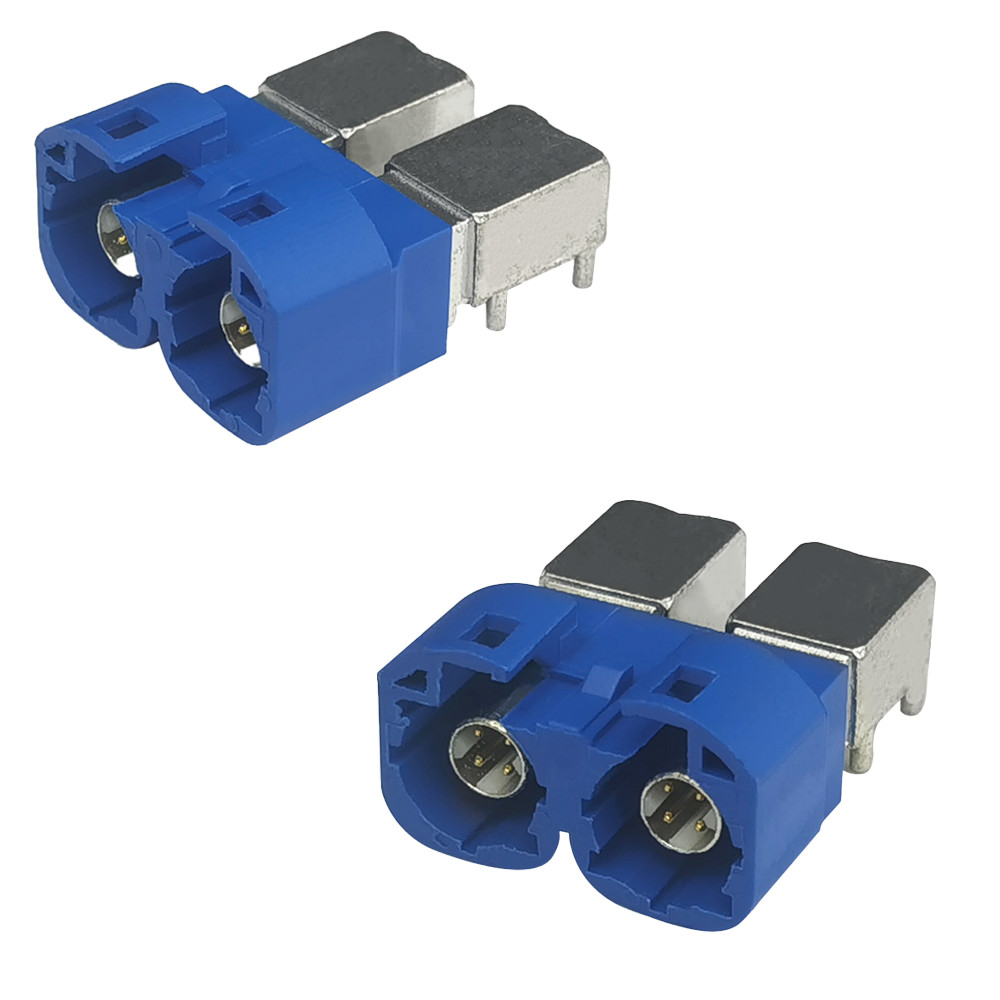

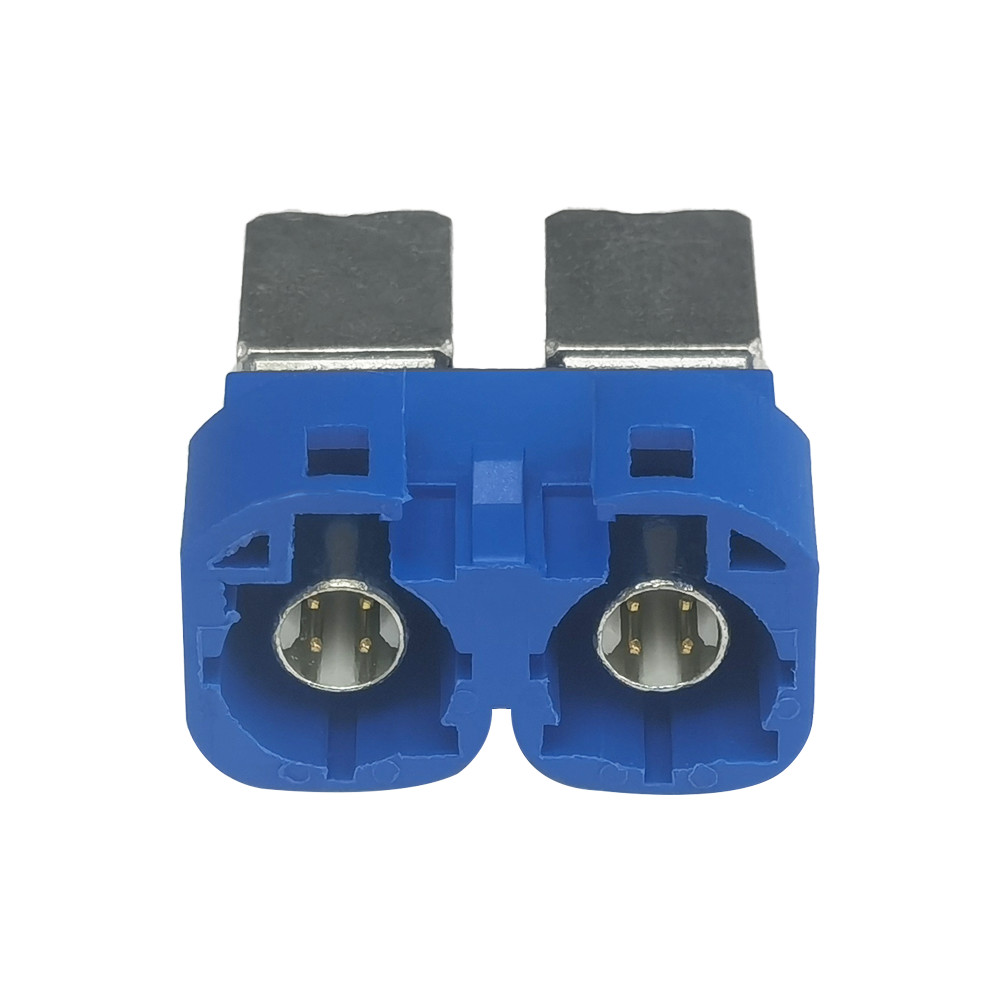

4+4 Pin FAKRA HSD Connector Right Angle For Automotive Electronics
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impedance | 100Ω | Number Of Positions | 4+4Pin |
|---|---|---|---|
| Orientation | Right Angle Type | Operating Temperature | -40℃ To +105℃ |
| Mounting Type | PCB Mount | Frequency Range | DC To 6 GHz |
| Services | OEM ODM Accept | MOQ | 20PCS |
| Highlight | FAKRA HSD Connector For Automotive Electronics,4+4 Pin FAKRA HSD Connector |
||
Product Description
Product Description:
HSD (high-speed data) connectors are widely used in the automotive industry for their ability to support data transmissions at high frequencies of up to 6 GHz.
HSD is a specially designed interconnect system that meets the real-time demands of high-speed data and low voltage requirements in automotive applications. This system is made up of fully shielded connectors with a 100-ohm impedance, making it durable and compact. The mechanical keying and latching feature ensures a strong connection, while the coding prevents misuse.
The HSD cable and PCB (printed circuit board) connector system not only delivers high data throughput, but also offers protection against crosstalk and external interference. This makes it an ideal choice for various applications such as LVDS cameras, USB connectivity, Ethernet (IEEE 802.3), FireWire (IEEE 1394), and more. It is also suitable for digital infotainment electronics and digital symmetrical networks, including those found in radio base stations.
Features:
- Impedance:The impedance of this product is 100 ohms.
- Frequency Range:The frequency range DC up to 6 GHz.
- Data Rates:Data rates of up to 8 Gbps can be achieved with this product.
- Temperature Range:This product can withstand extreme temperatures, operating from -40 °C to +105 °C.
- Mating Cycles:The durability of this product is proven with a minimum of 25 mating cycles. Additionally, it has a waterproof mating cycle of at least 5.
- Coding and Locking Systems:This product features different mechanical and color coding, as well as a neutral code, for easy identification and secure mating. The primary and secondary locks provide high assembling security, preventing misuse. This makes HSD and its variants the perfect choice for the demanding requirements of the automotive industry, ensuring reliability and durability.
- Multiple Housings:This product offers multiple housing options, allowing for space savings and quick plug-in operations.
Technical Parameters:
| Item | Specification |
|---|---|
| Product Name | FAKRA HSD Connector |
| Mounting Type | PCB Mount |
| Number of Positions | 4+4Pin |
| Working Voltage | 60 V Rms |
| Impedance | 100Ω |
| Orientation | Right Angle Type |
| Frequency Range | DC To 6 GHz |
| Operating Temperature | -40℃ To +105℃ |
| Applications | LVDS Camera, USB, And IEEE 1394 |
| Services | OEM ODM Accept |
| Keywords | FAKRA HSD LVDS 4Pin, automotive wire connectors, hsd connector automotive, fakra connector for LVDS |
Applications:
- Automotive Electronics
- Telecom Industries
- Infotainment Electronics:Digital infotainment electronics play a key role in enhancing the driving experience. These include entertainment systems, navigation systems, and other features that provide drivers and passengers with a variety of options for entertainment, information, and convenience.
- Digital Symmetrical Networks:An important aspect of automotive electronics is the use of digital symmetrical networks. These networks are responsible for facilitating the transfer of digital data between different components in the vehicle, such as LVDS cameras, USB connections, and Ethernet and Firewire connections.
- LVDS:LVDS, or Low Voltage Differential Signal, is a type of transmission used for high-speed data communication. It is commonly used in automotive electronics for connecting cameras and other devices.
- USB1.0, 2.0, 3.0
- GVIF:GVIF, or Gigabit Video Interface, is a type of interface used for transmitting high-speed video data. It is commonly used in automotive electronics for connecting video displays and cameras.
HSD Coding:
Customization:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.
Support and Services:
- Accept OEM and ODM orders.
- Samples are free of charge, only the customer has to pay the courier fee.
- Support multiple logistics methods.
- Fast delivery time and first-class service.
