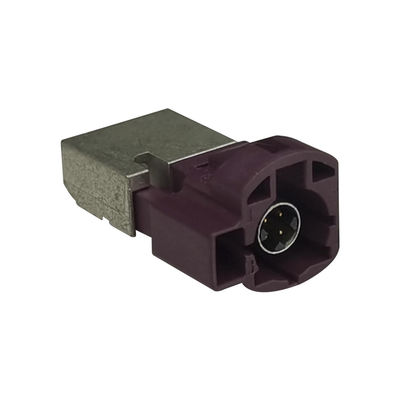

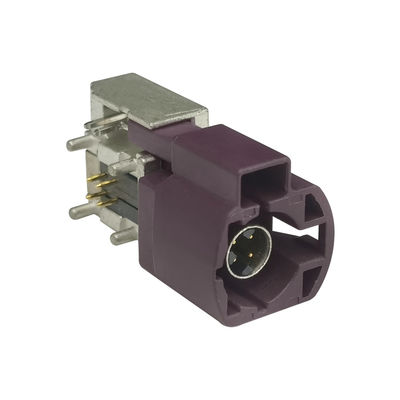

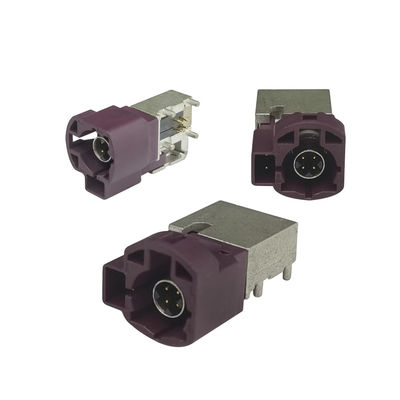

FAKRA HSD Connector Right Angle Type For GPS Telematics Or Navigation
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Orientation | Right Angle Type | Frequency Range | DC To 6 GHz |
|---|---|---|---|
| Mating Cycles | ≥ 25 | Working Voltage | 60 V Rms |
| Number Of Positions | 4+2Pin | Impedance | 100Ω |
| Services | OEM ODM Accept | MOQ | 20PCS |
| Highlight | FAKRA HSD Connector For GPS Telematics,Right Angle FAKRA HSD Connector |
||
Product Description
Product Description:
The automotive industry commonly utilizes high-speed data connector systems such as HSD+2, +4, +8, and HSD up to 6 GHz.
HSD is a high-performance digital system specifically designed for low-voltage differential signals, providing protection against crosstalk and external interference. This fully shielded interconnect system has a 100 Ω impedance and utilizes shielded twisted-pair cables.
With its mechanical keying, latching, color coding options, and compact size, the HSD interconnect system is ideal for LVDS cameras, USB, and IEEE 1394 applications in the automotive market. It meets the stringent requirements of the global automotive industry for high-speed data connections.
Features:
- Primary and Secondary Lock: Ensures secure connections with a primary lock and additional protection from accidental disconnections through a secondary lock.
- High Cable Retention Force: Secures cables firmly, preventing disconnection, crucial in high-vibration environments for stable operations.
- High Coding Efficiency: Efficient plastic housing coding minimizes errors, ensuring precise and reliable identification of connections.
- Different Mechanical and Colored Codings: Diverse coding options allow customization, preventing confusion with unique combinations.
- Neutral Coding Option: Universal and standardized connection for compatibility across various applications.
- HSD System Features: Complies with global standards for automotive applications. Features mechanical keying, latching for stability, color code options, and minimum size for automotive design adherence.
- Compact Design: Space-saving and compliant with size restrictions in automotive designs for versatile integration.
HSD System Features
The HSD system is designed with several key features to meet the stringent requirements of the global automotive industry. These features include:
- Mechanical Keying - ensures that connectors can only be mated with their corresponding counterpart to avoid any mismatched connections.
- Latching - provides a secure and reliable connection that resists shock and vibration forces.
- Color Code Options - offers multiple color coding options for easy identification and alignment of multiple connections.
- Minimum Size - designed to be compact and space-efficient, making it suitable for various vehicle designs and layouts.
Technical Parameters:
| Technical Parameters | Values |
|---|---|
| Orientation | Right Angle Type |
| Mounting Type | PCB/Panel Mount |
| Frequency Range | DC To 6 GHz |
| Impedance | 100Ω |
| Operating Temperature | -40℃ To +105℃ |
| Number of Positions | 4+2Pin |
| Mating Cycles | ≥ 25 |
| Applications | LVDS Camera, USB, AndIEEE 1394 Applications |
| Services | OEM ODM Accept |
| Key Features | Coaxial Connector, Automotive Connectors, Automotive Wire Connectors, RF Connector, Automotive Electrical Connectors |
Applications:
- The HSD interconnect system is specifically designed for use in the automotive market, including applications such as LVDS cameras, USB, and IEEE 1394 connections.
- The system is compatible with multiple USB versions, including 1.0, 2.0, and 3.0.
- LVDS, or Low Voltage Differential Signal, is a type of signal used in the system.
- Firewire, also known as IEEE 1394, is another type of connection supported by the HSD system.
- The system also supports GVIF connections.
- In addition to automotive applications, the HSD system is also commonly used in telecom industries, such as radio base stations.
- It is also widely utilized in digital infotainment electronics.
- Furthermore, the HSD system is also capable of handling digital symmetrical networks.
HSD Coding:
Customization:
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
- Accept OEM and ODM orders.
- Samples are free of charge, only the customer has to pay the courier fee.
- Support multiple logistics methods.
- Fast delivery time and first-class service.
Contact Us
Email: info@leadsignauto.com
Website: www.fakraconnectors.com
If you have any questions about our products or need technical support or service, please feel free to contact us. Our team will be happy to serve you and make sure you have a good experience when using our products.
Thank you for choosing our products. We look forward to serving you.
