HSD LVDS Cable 4 Pin C to F Code for Automotive Applications

  • HSD LVDS Cable 4 Pin C to F Code for Automotive Applications
Place of Origin CHINA
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Category HSD LVDS Cable Impedance 100Ω
Connector1 C Code，blue Connector F Code, Brown
Service OEM & ODM Is Accepted MOQ 20PCS
Leave a Message
Product Description

Product Description:

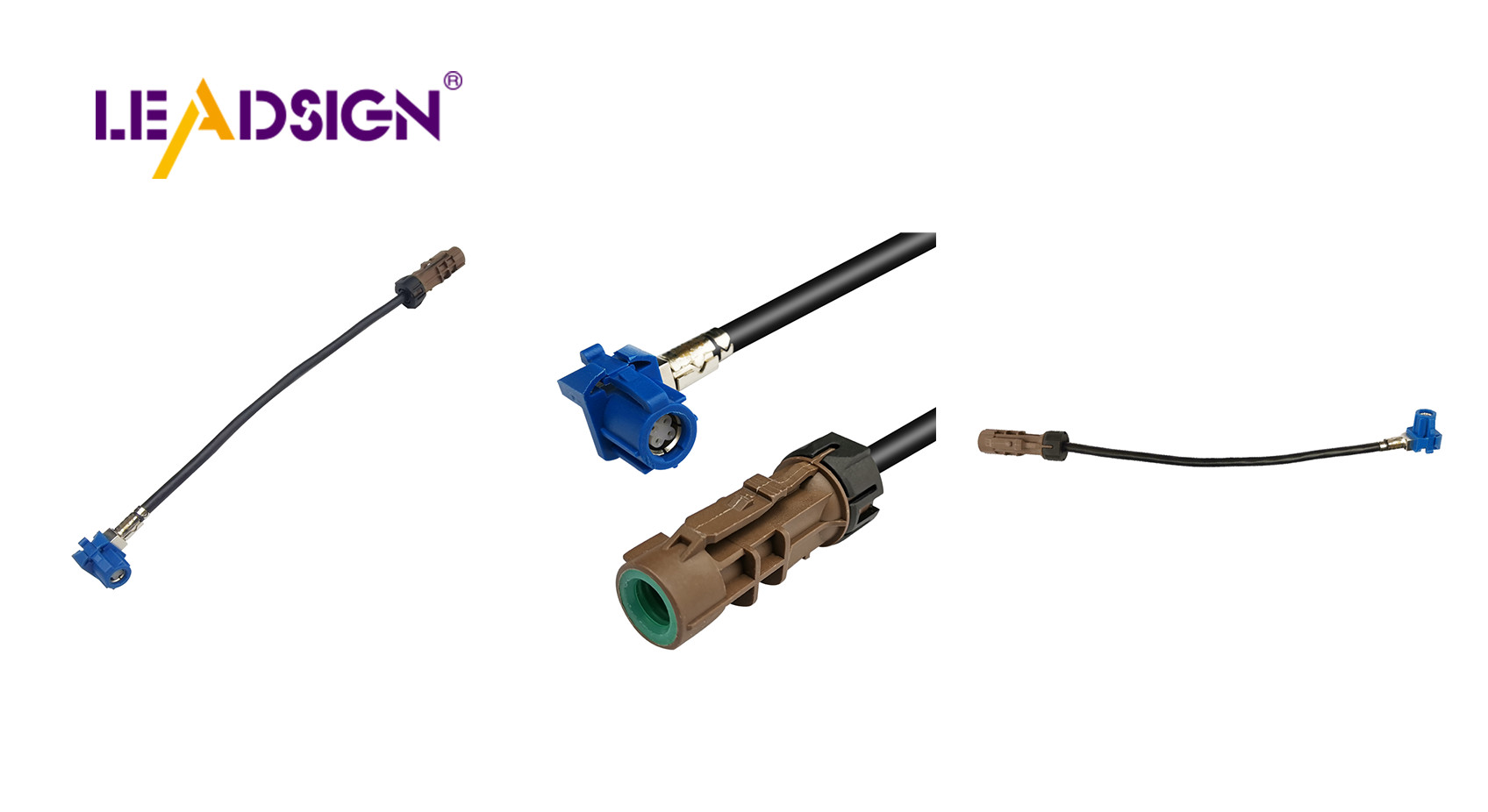

The HSD cable is engineered to deliver high-quality performance and reliability in automotive applications. Featuring right angle (C code, 4 Pin) and straight (F code, 4 Pin) connectors, this cable is designed for optimal signal integrity and durability. It is ideal for use in various vehicle systems, ensuring robust connections and seamless data transfer.



Features:

  • Versatile Connectivity: Available with right angle (C code) and straight (F code) connectors for flexible installation options.
  • Durable Construction: Built to withstand harsh automotive environments, ensuring long-term reliability and performance.
  • Enhanced Signal Integrity: Provides stable and consistent signal transmission, minimizing interference and ensuring high-quality data transfer.
  • Compact Design: Right angle connector design saves space and facilitates easy integration into tight automotive spaces.
  • Straightforward Installation: Straight connectors simplify the installation process, reducing time and complexity.
  • Broad Compatibility: Suitable for a wide range of automotive systems, including entertainment, navigation, and safety components.


Technical Parameters:

HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


Applications:

  • In-Car Entertainment Systems: Connects multimedia units for reliable and high-quality audio and video.
  • Advanced Driver Assistance Systems (ADAS): Facilitates data transfer for critical safety features and systems.
  • Navigation Systems: Ensures accurate and uninterrupted performance for GPS and navigation units.
  • Infotainment Units: Integrates with infotainment systems to provide seamless connectivity and functionality.
  • Camera Systems: Connects in-vehicle camera systems for enhanced visibility and driver assistance.
  • Diagnostic Equipment: Useful for automotive diagnostic tools, providing accurate data transmission for effective diagnostics.


HSD Coding:

HSD LVDS Cable 4+2 Pin H to Z Code for Automotive Applications 0HSD LVDS Cable 4+2 Pin H to Z Code for Automotive Applications 1

Custom Services:

  • Accepts OEM & ODM orders to accommodate specific design and application requirements.


Service Details:

  • Fast delivery time and first-class service.
  • Samples are free of charge; customers only need to pay the courier fee.
  • Supports multiple logistics methods to ensure flexible shipping options.
  • Accepts OEM and ODM orders for customized solutions.
