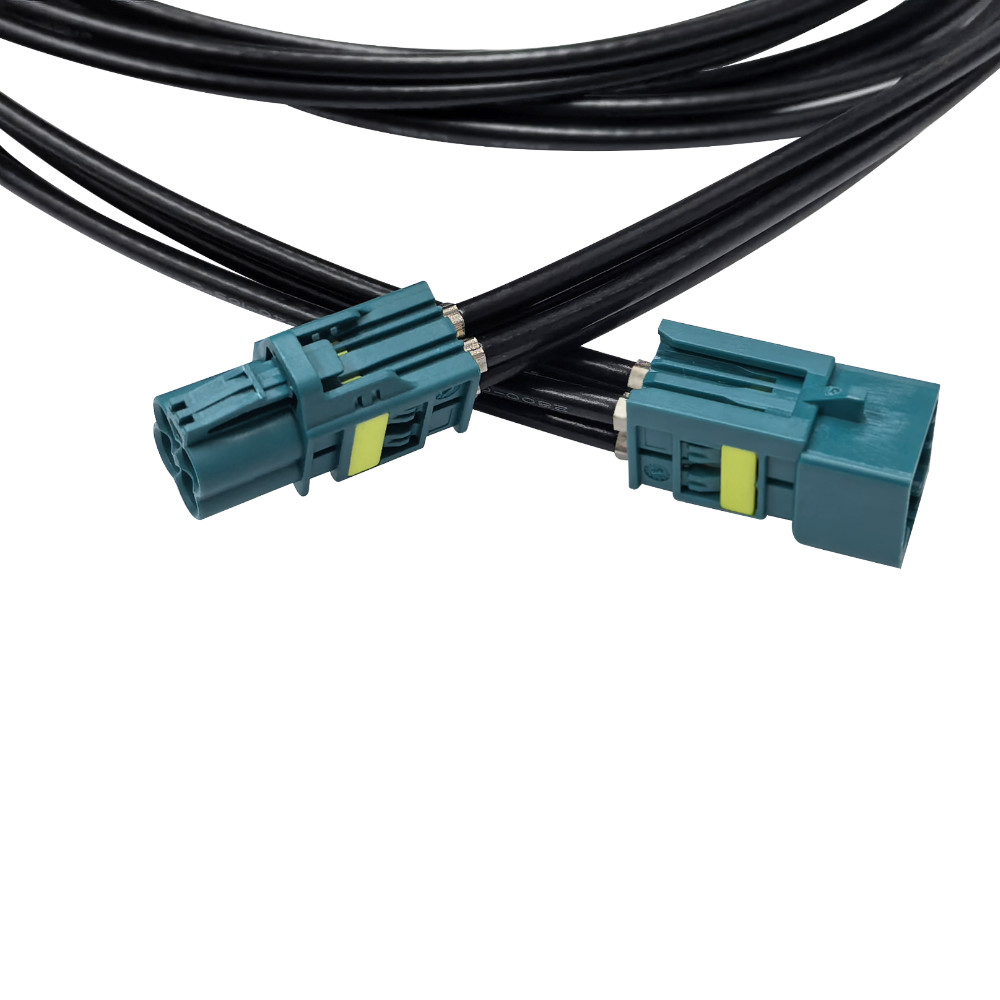

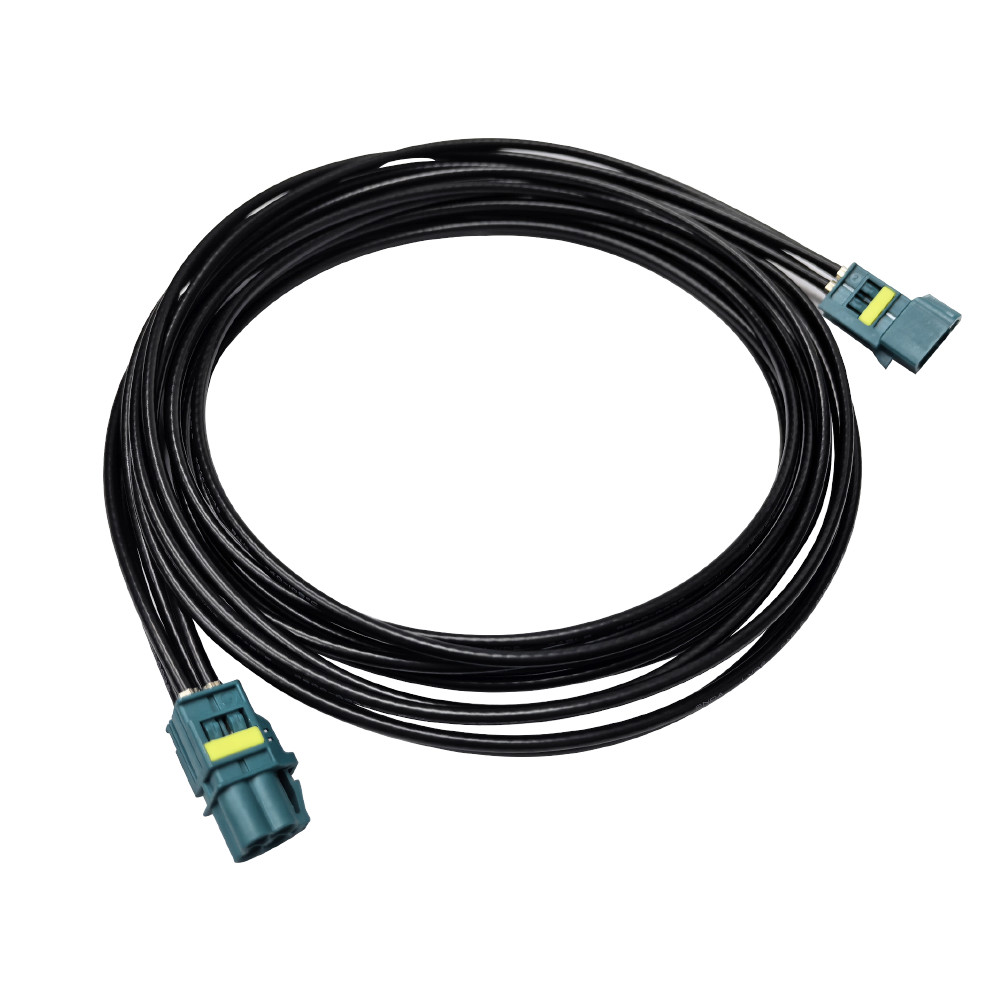

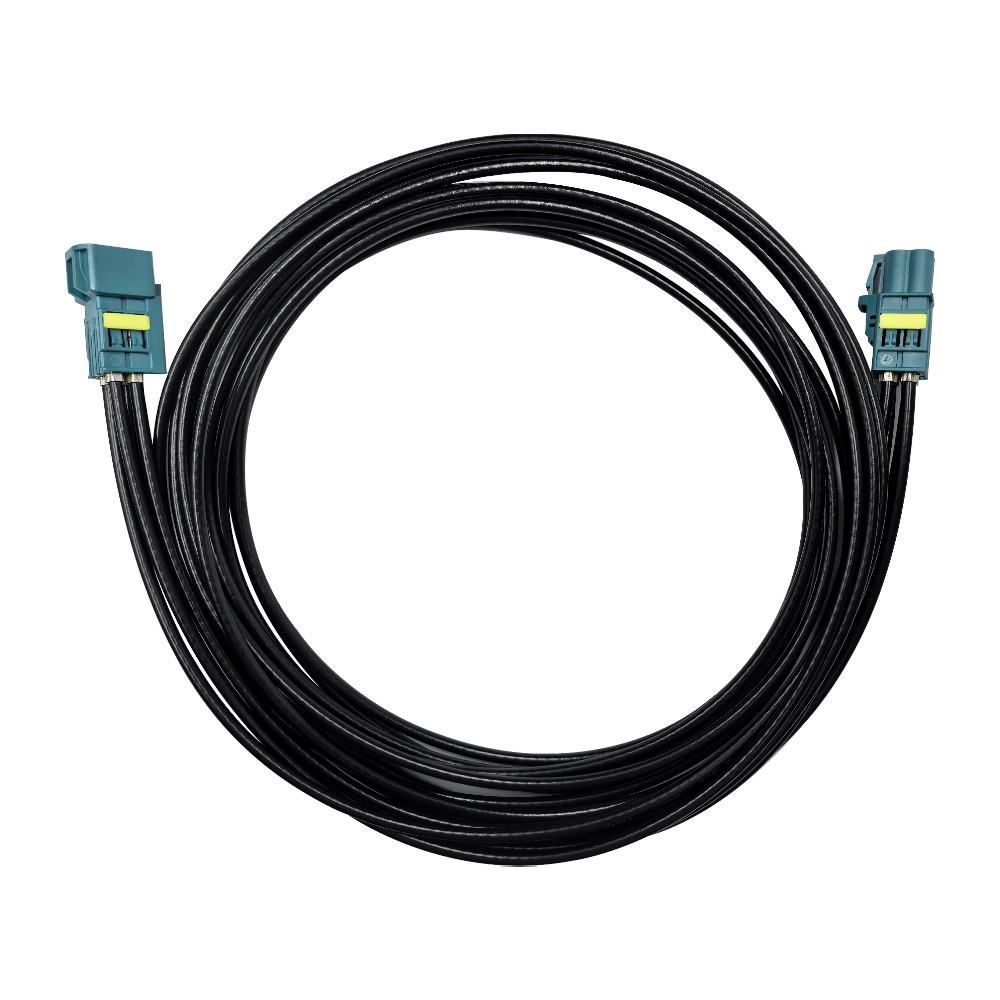

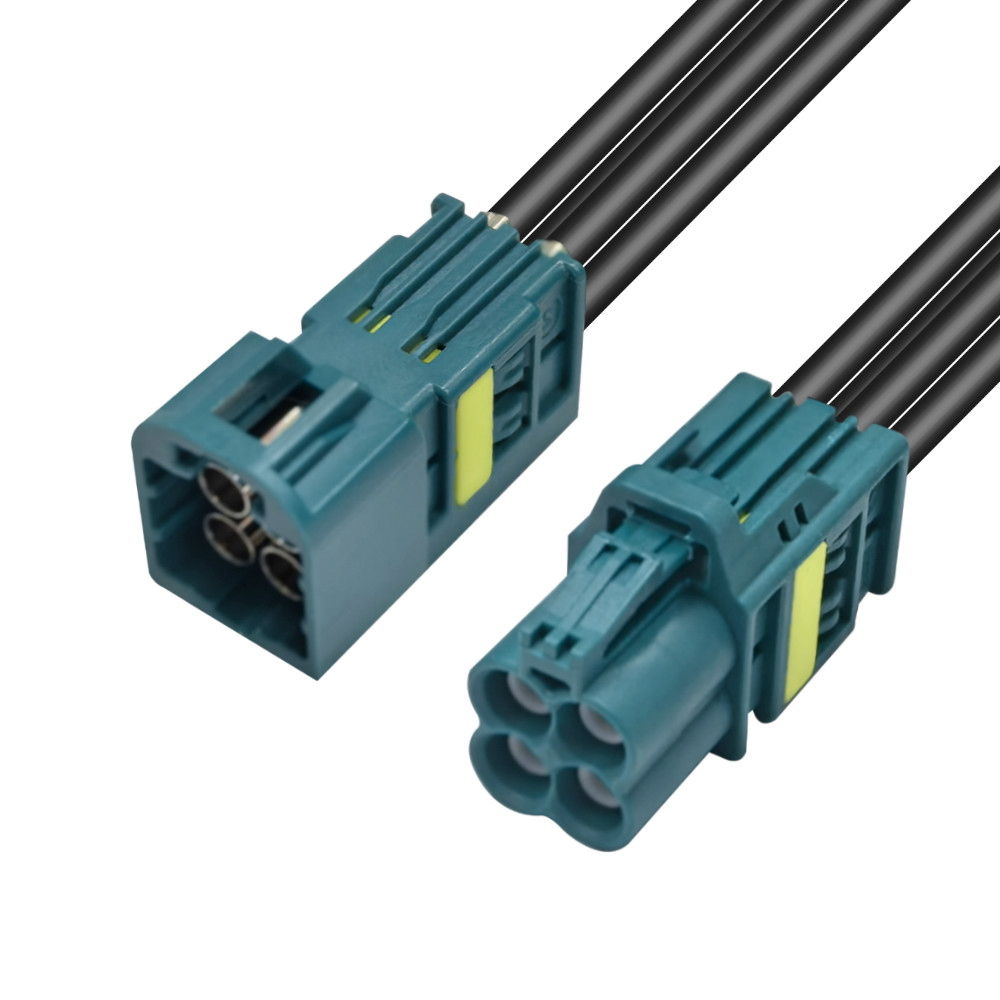

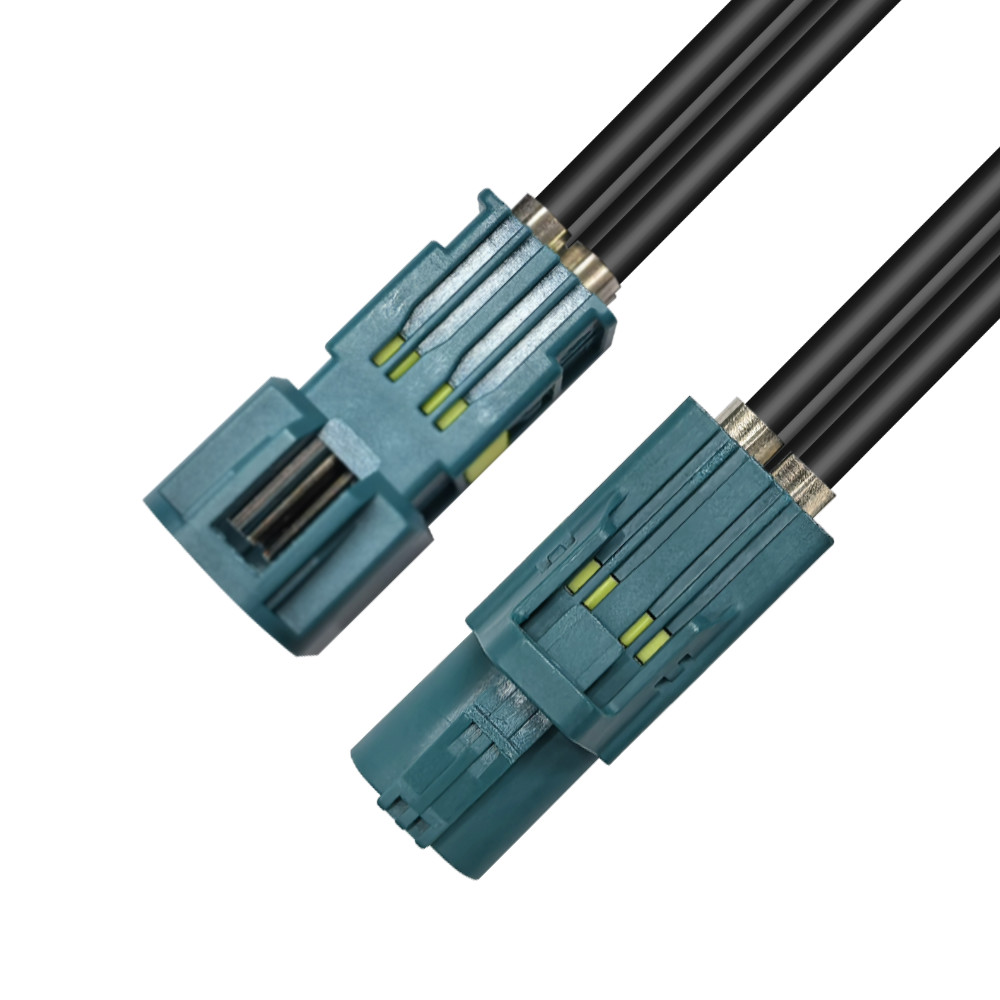

Mini FAKRA Z Code Cable for Secure Wireless Vehicle Communication
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | Z Code Mini FAKRA Connector | Orientation | Straight |
|---|---|---|---|
| Cable Type | Coaxial | Gender | Male/Female |
| Services | OEM ODM Accept |
Product Description
Product Description:
The Mini FAKRA (HFM) Cable is a cutting-edge automotive connector solution tailored for high-speed, high-frequency data transmission. This advanced connector, designed specifically for the automotive industry, boasts significant advantages over conventional FAKRA connectors.
The HFM (High-Speed FAKRA-Mini) connector offers exceptional space savings of up to 80%, making it particularly suitable for compact automotive designs. By supporting frequencies of up to 20 GHz and data rates of up to 28 Gbps, this connector is highly suitable for modern vehicle communication systems.
Its lightweight and cost-efficient design not only streamlines installation flexibility but also ensures exceptional signal integrity and mechanical robustness, meeting the demanding requirements of automotive applications.
Features:
Key Features:
- Impedance: The product boasts an impedance of 50 Ω, ensuring stable signal transmission.
- Wide Frequency Range: Ideal for high-frequency applications, with a frequency range from DC to 20 GHz.
- High Data Rates: Supporting data rates of up to 28 Gbps, making it perfect for real-time data transfer.
- Compact & Space-Saving: Maximize installation efficiency with a size that is 80% smaller than standard FAKRA connectors.
- Durability: Designed for at least 25 mating cycles, ensuring longevity and reliability.
- Reliable & Robust: With high mechanical strength, it is suitable for long-term use in automotive applications.
- Modular System: An optimized design that reduces weight and cost while maintaining functionality.
- Optional CPA (Connector Position Assurance): Ensures secure connections for peace of mind.
Technical Parameters:
- Impedance: 50Ω
- Frequency Range (depends on cable): DC to 20 GHz
- Center Contact Resistance: ≤ 15 mΩ
- Outer Contact Resistance: ≤ 5 mΩ
- Test Voltage: ≤ 800 V rms
- Working Voltage: ≤ 60 V DC
- Mating Cycles (Standard, Non-Waterproof): ≥ 25
- Temperature Range: -40°C to +105°C
Applications:
- ADAS (Advanced Driver Assistance Systems): Enables real-time sensor data transmission for informed driving decisions.
- Navigation Systems: Ensures precise GPS and mapping for accurate vehicle movement.
- Infotainment Systems: Supports high-speed audio and video streaming for an enhanced experience.
- Rear-Seat Entertainment: Provides stable connectivity for in-car entertainment.
- Vehicle Internet: Ensures seamless network connectivity for smart vehicle functions.
Mini FAKRA Coding:
Customization:
We offer a variety of custom cable types, connector options, and cable lengths to suit your needs. Ensure your RF cable assembly fits your project specifications perfectly. We’re here to accommodate your requirements and provide the best solution. Don’t hesitate to reach out to us.
Support and Services:
- We welcome custom orders.
- Samples are free; you only cover the shipping cost.
- We offer various shipping options.
- Quick delivery and excellent service.
