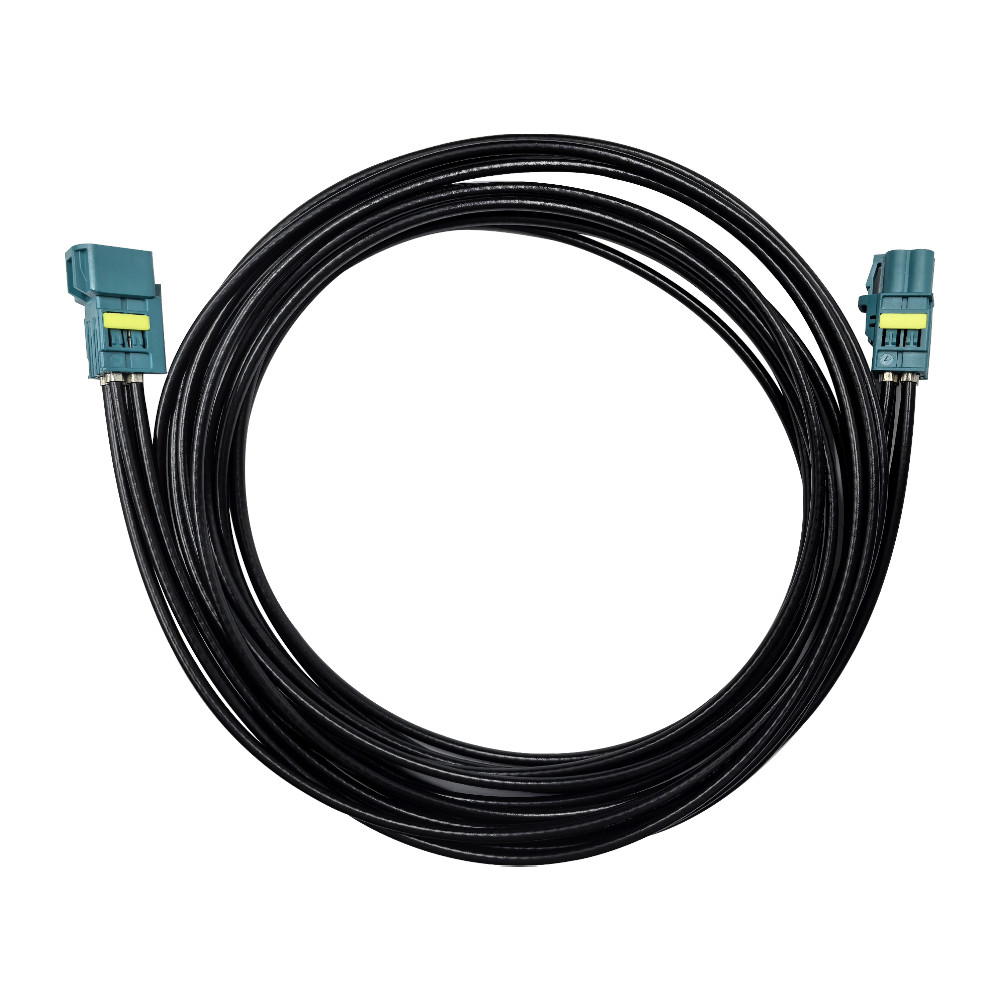

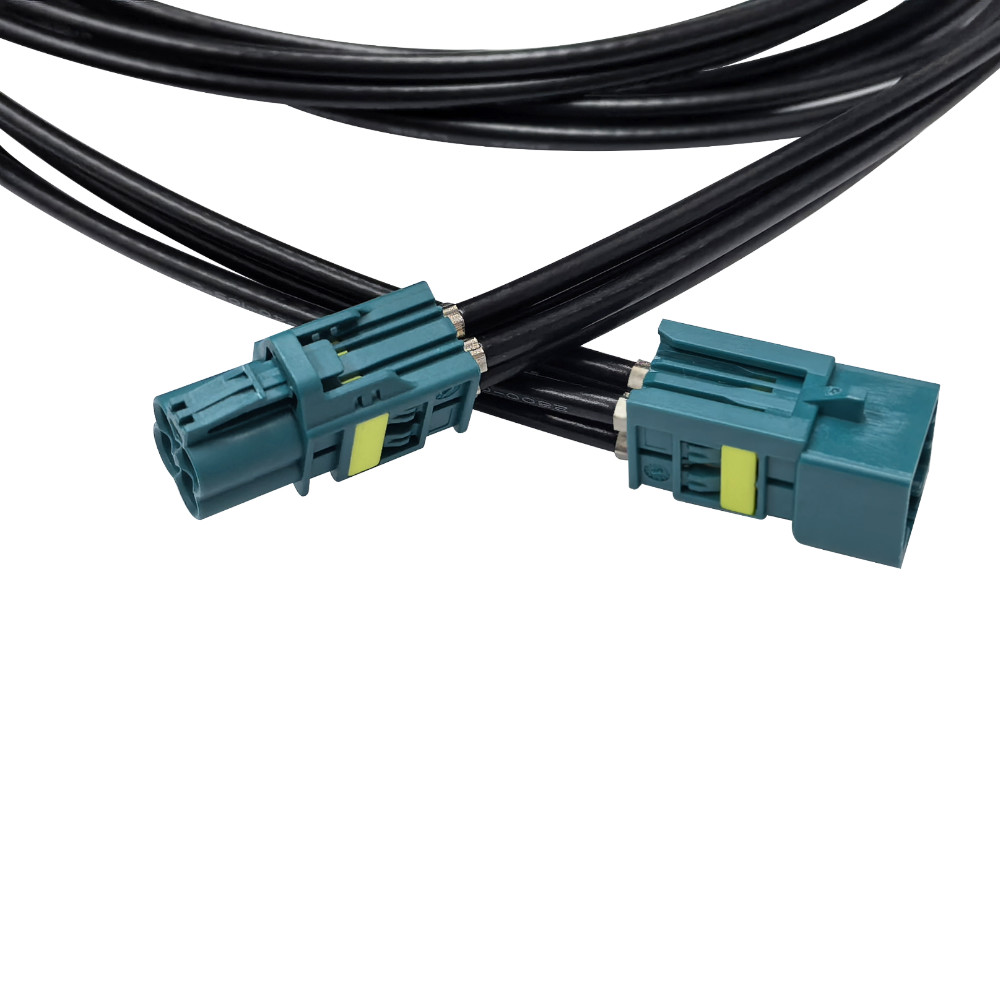

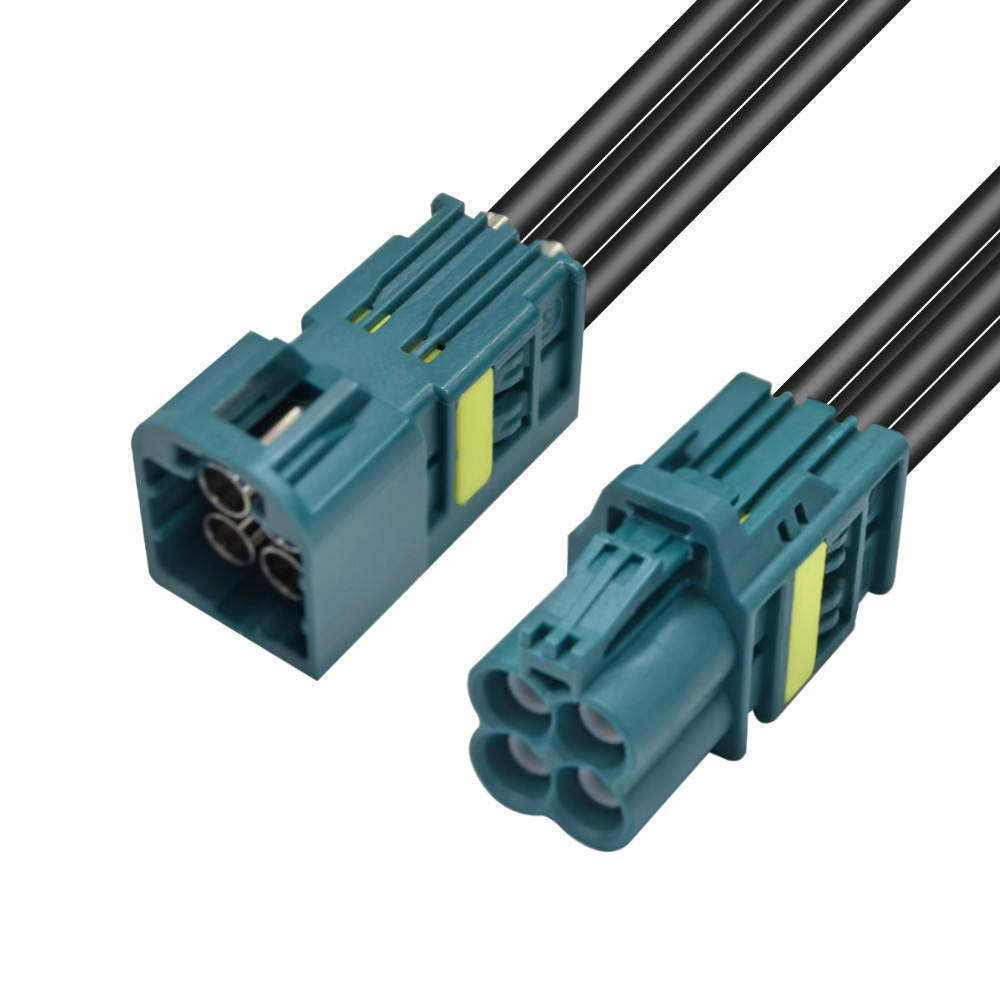

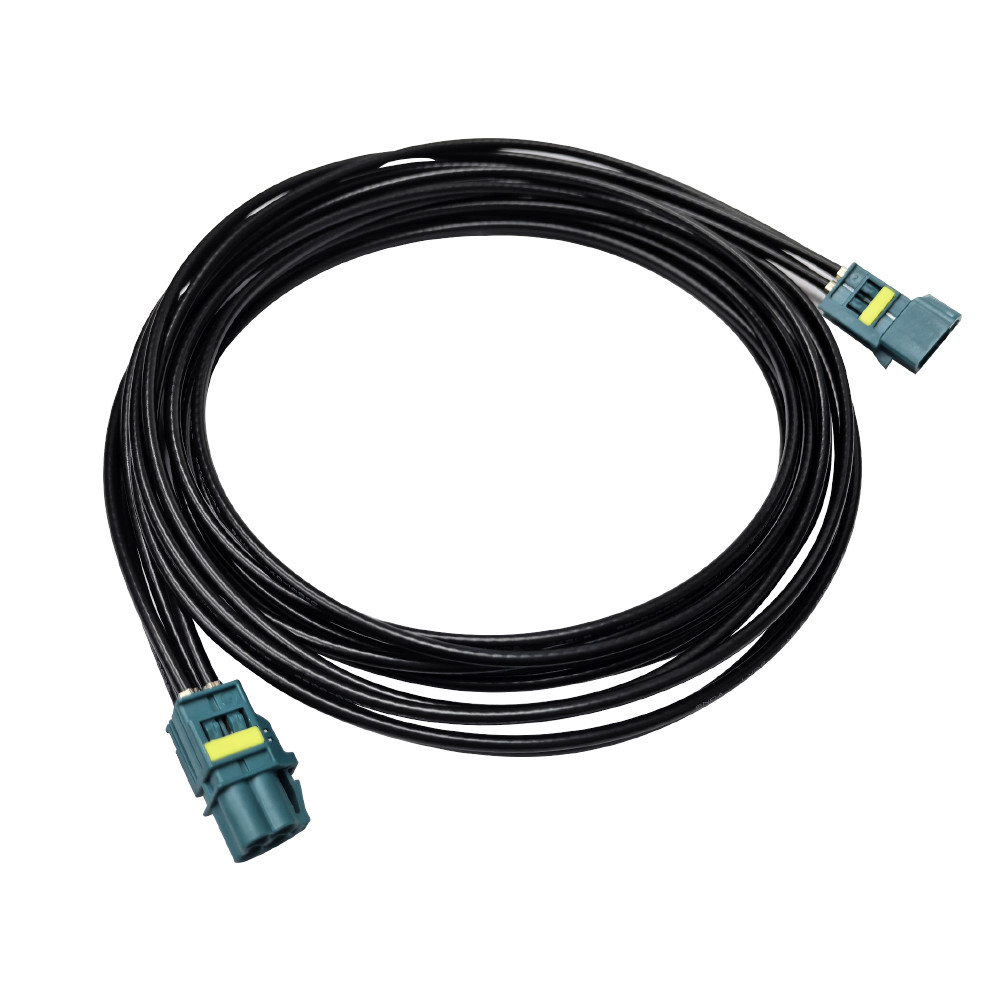

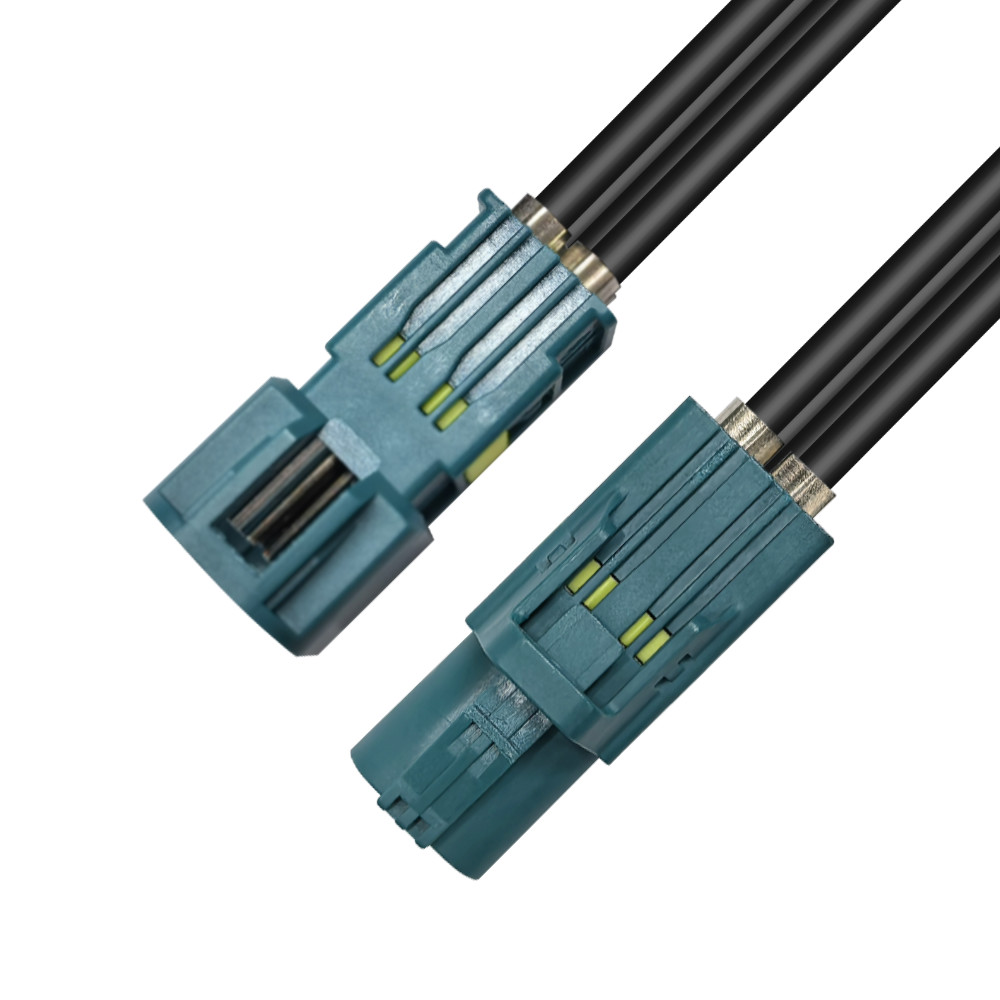

Mini FAKRA Z Code Cable for Stable Rear-Seat Entertainment Connectivity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | Z Code Mini FAKRA Connector | Cable Type | Coaxial |
|---|---|---|---|
| Code | Z Code | Orientation | Straight |
| Gender | Male/Female | Services | OEM ODM Accept |
Product Description
Product Description:
The Mini FAKRA (HFM) Cable is an advanced automotive connector solution designed for high-speed, high-frequency data transmission. Compared to traditional FAKRA connectors, HFM (High-Speed FAKRA-Mini) offers up to 80% space savings, making it ideal for compact automotive designs.
Supporting frequencies up to 20 GHz and data rates up to 28 Gbps, it is perfect for modern vehicle communication systems. The lightweight, cost-efficient design enhances installation flexibility while maintaining exceptional signal integrity and mechanical robustness.
Features:
- Impedance: 50 Ω for stable signal transmission
- Wide Frequency Range: DC to 20 GHz for high-frequency applications
- High Data Rates: Supports up to 28 Gbps , ideal for real-time data transfer
- Compact & Space-Saving: 80% smaller than standard FAKRA, maximizing installation efficiency
- Durability: Designed for at least 25 mating cycles
- Reliable & Robust: High mechanical strength for long-term automotive use
- Modular System: Optimized design for reduced weight and cost
- Optional CPA (Connector Position Assurance): Ensures secure connections
Technical Parameters:
1.Impedance: 50Ω
2.Frequency Range (depends on cable): DC to 20 GHz
3.Center Contact Resistance: ≤ 15 mΩ
4.Outer Contact Resistance: ≤ 5 mΩ
5.Test Voltage: ≤ 800 V rms
6.Working Voltage: ≤ 60 V DC
7.Mating Cycles (Standard, Non-Waterproof): ≥ 25
8.Temperature Range: -40°C to +105°C
Applications:
- Autonomous Driving: Enables self-driving vehicles to operate safely and efficiently.
- ADAS: Uses sensors for real-time data transmission, enhancing safety.
- Navigation Systems: Ensures accurate GPS and mapping for smooth travel.
- Infotainment Systems: Supports high-speed audio and video streaming.
- Rear-Seat Entertainment: Provides reliable in-car entertainment for passengers.
- Vehicle Internet: Enables seamless connectivity for smart car features.
Mini FAKRA Coding:
Customization:
We offer a variety of custom cable types, connector options, and cable lengths to suit your needs. Ensure your RF cable assembly fits your project specifications perfectly. We’re here to accommodate your requirements and provide the best solution. Don’t hesitate to reach out to us.
Support and Services:
- We welcome custom orders.
- Samples are free; you only cover the shipping cost.
- We offer various shipping options.
- Quick delivery and excellent service.
