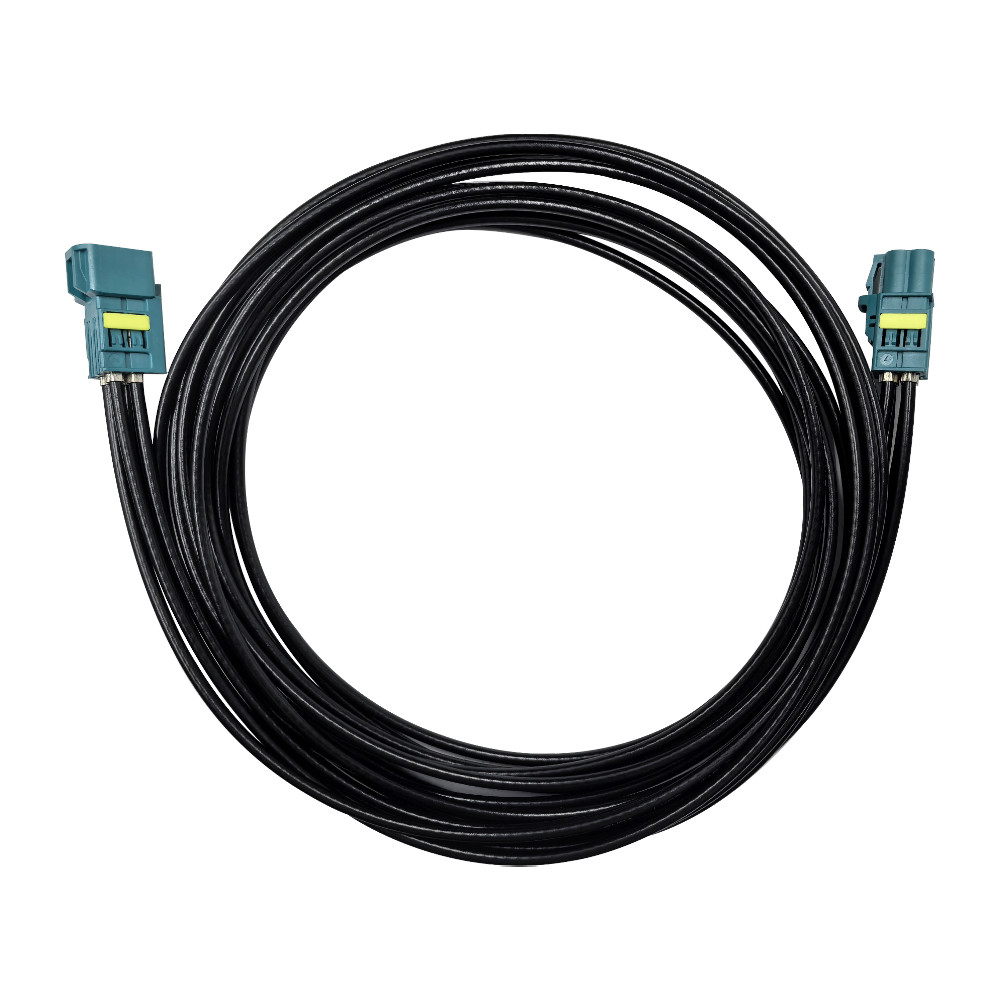

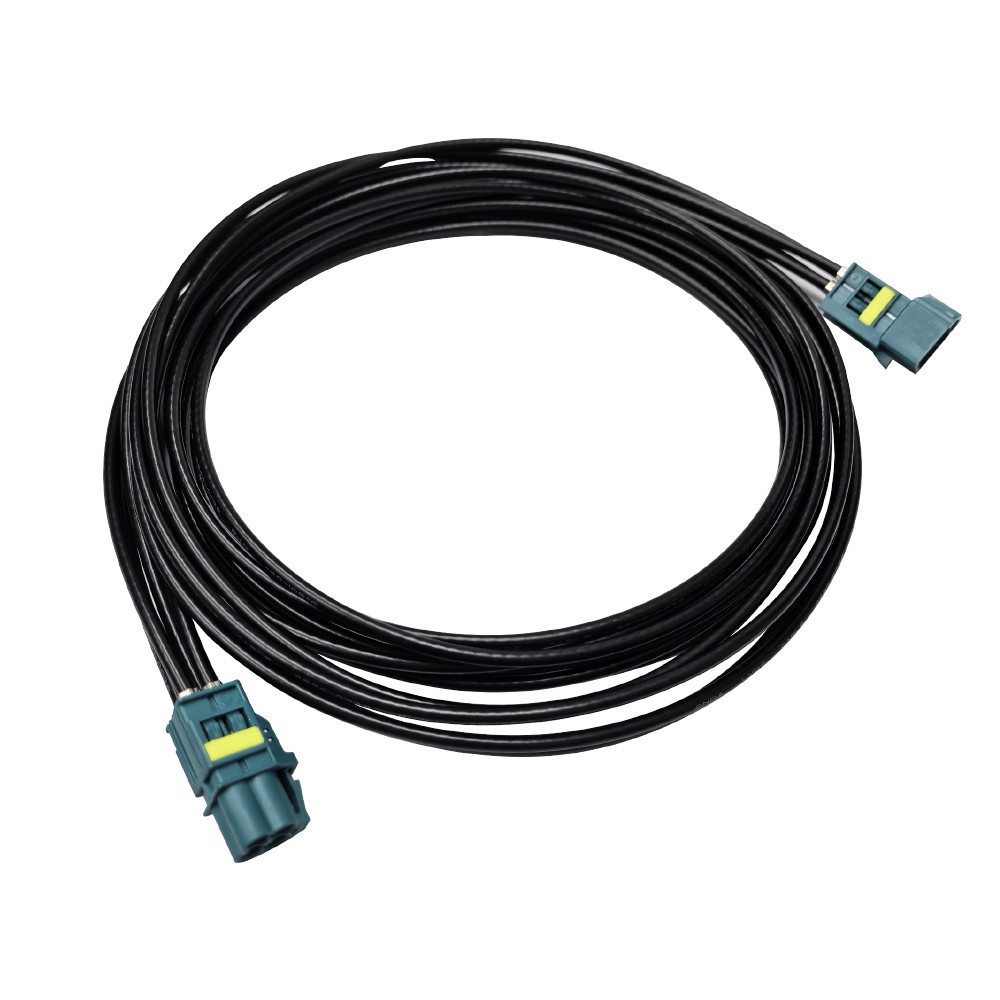

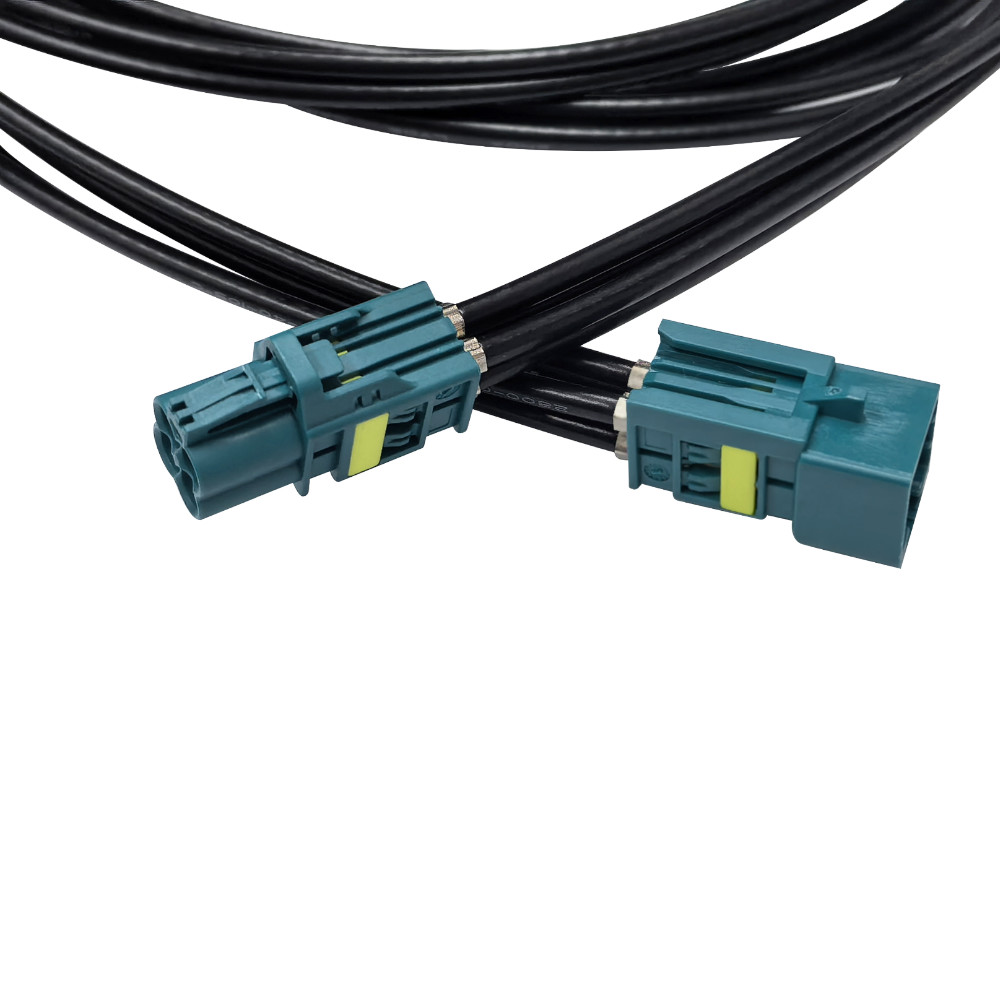

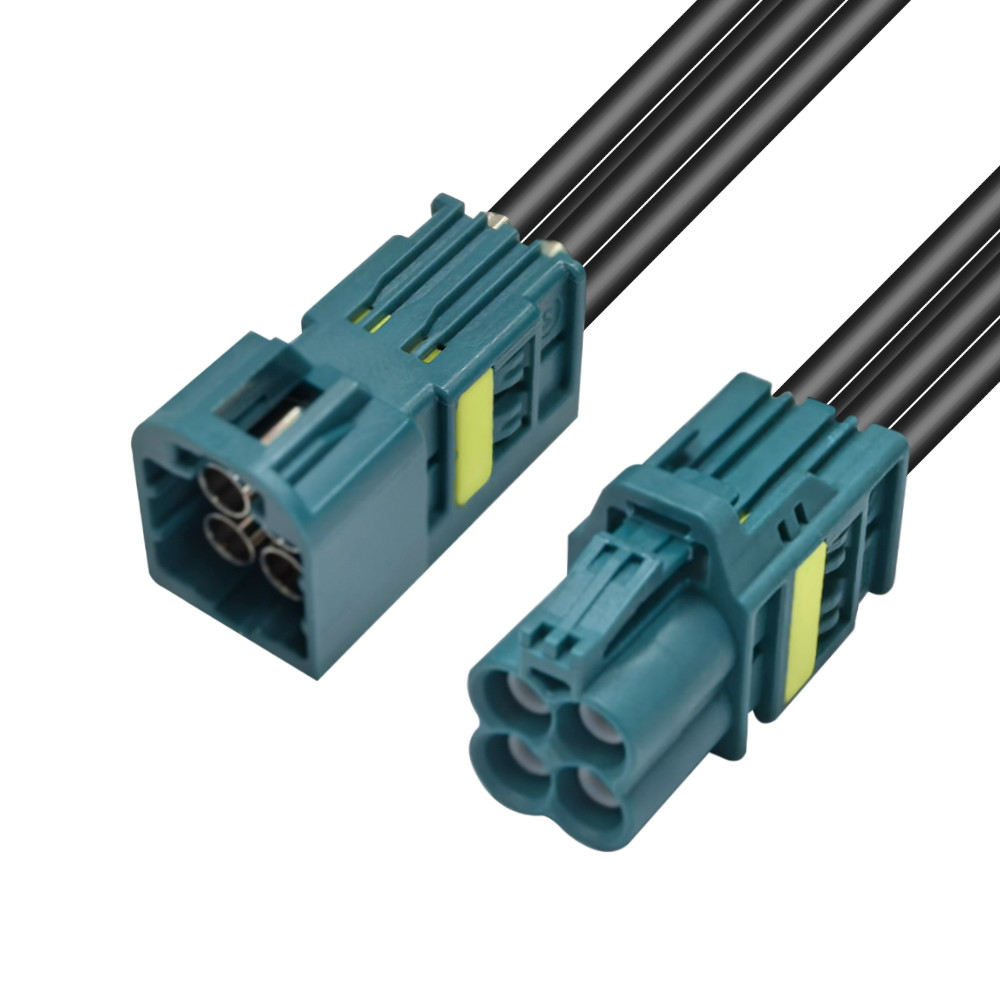

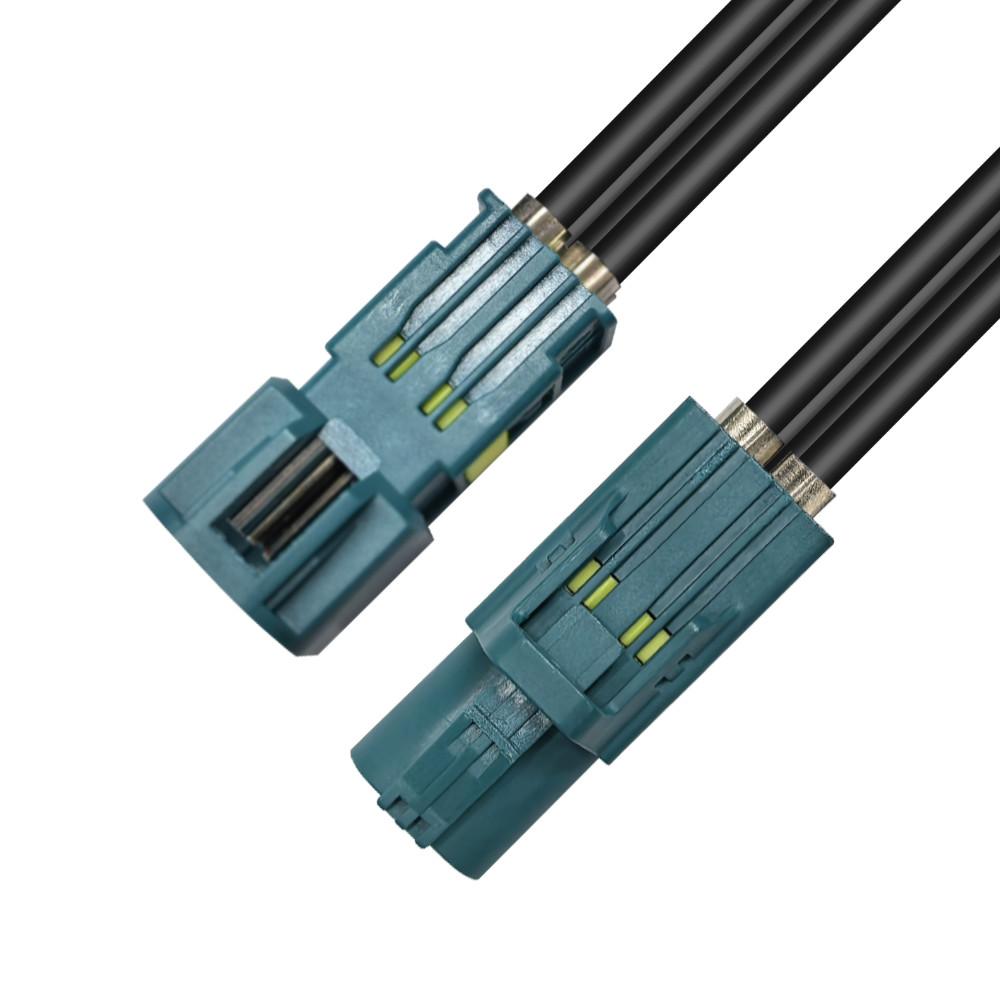

Mini FAKRA Z Code Cable for Reliable In-Vehicle Infotainment Systems
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | Z Code Mini FAKRA Connector | Orientation | Straight |
|---|---|---|---|
| Cable Type | Coaxial | Gender | Male/Female |
| Services | OEM ODM Accept |
Product Description
Product Description:
The Mini FAKRA (HFM) Cable is a cutting-edge automotive connector solution specifically crafted for high-speed, high-frequency data transmission purposes. In contrast to the conventional FAKRA connectors, HFM (High-Speed FAKRA-Mini) provides space savings of up to 80%, making it particularly suitable for compact automotive layouts. With capabilities to support frequencies reaching up to 20 GHz and data rates up to 28 Gbps, it proves to be an excellent choice for contemporary vehicle communication systems.
The design of the Mini FAKRA (HFM) Cable is not only lightweight and cost-efficient but also greatly enhances installation flexibility. Furthermore, it maintains outstanding signal integrity and mechanical robustness, making it a reliable option for automotive applications that demand high performance and durability.
Features:
Impedance: 50 Ω for stable signal transmission
Wide Frequency Range: DC to 20 GHz for high-frequency applications
High Data Rates: Supports up to 28 Gbps, ideal for real-time data transfer
Compact & Space-Saving: 80% smaller than standard FAKRA, maximizing installation efficiency
Durability: Designed for at least 25 mating cycles
Reliable & Robust: High mechanical strength for long-term automotive use
Modular System: Optimized design for reduced weight and cost
Optional CPA (Connector Position Assurance): Ensures secure connections
Technical Parameters:
- Impedance: 50Ω
- Frequency Range (depends on cable): DC to 20 GHz
- Center Contact Resistance: ≤ 15 mΩ
- Outer Contact Resistance: ≤ 5 mΩ
- Test Voltage: ≤ 800 V rms
- Working Voltage: ≤ 60 V DC
- Mating Cycles (Standard, Non-Waterproof): ≥ 25
- Temperature Range: -40°C to +105°C
Applications:
- Autonomous Driving: Enables seamless communication for self-driving vehicles.
- ADAS: Transmits real-time sensor data for enhanced safety.
- Navigation Systems: Provides accurate GPS and route guidance.
- Infotainment Systems: Supports high-speed audio and video streaming.
- Rear-Seat Entertainment: Ensures reliable in-car connectivity for passengers.
- Vehicle Internet: Maintains seamless smart car integration.
Mini FAKRA Coding:
Customization:
We offer a variety of custom cable types, connector options, and cable lengths to suit your needs. Ensure your RF cable assembly fits your project specifications perfectly. We’re here to accommodate your requirements and provide the best solution. Don’t hesitate to reach out to us.
Support and Services:
- We welcome custom orders.
- Samples are free; you only cover the shipping cost.
- We offer various shipping options.
- Quick delivery and excellent service.
