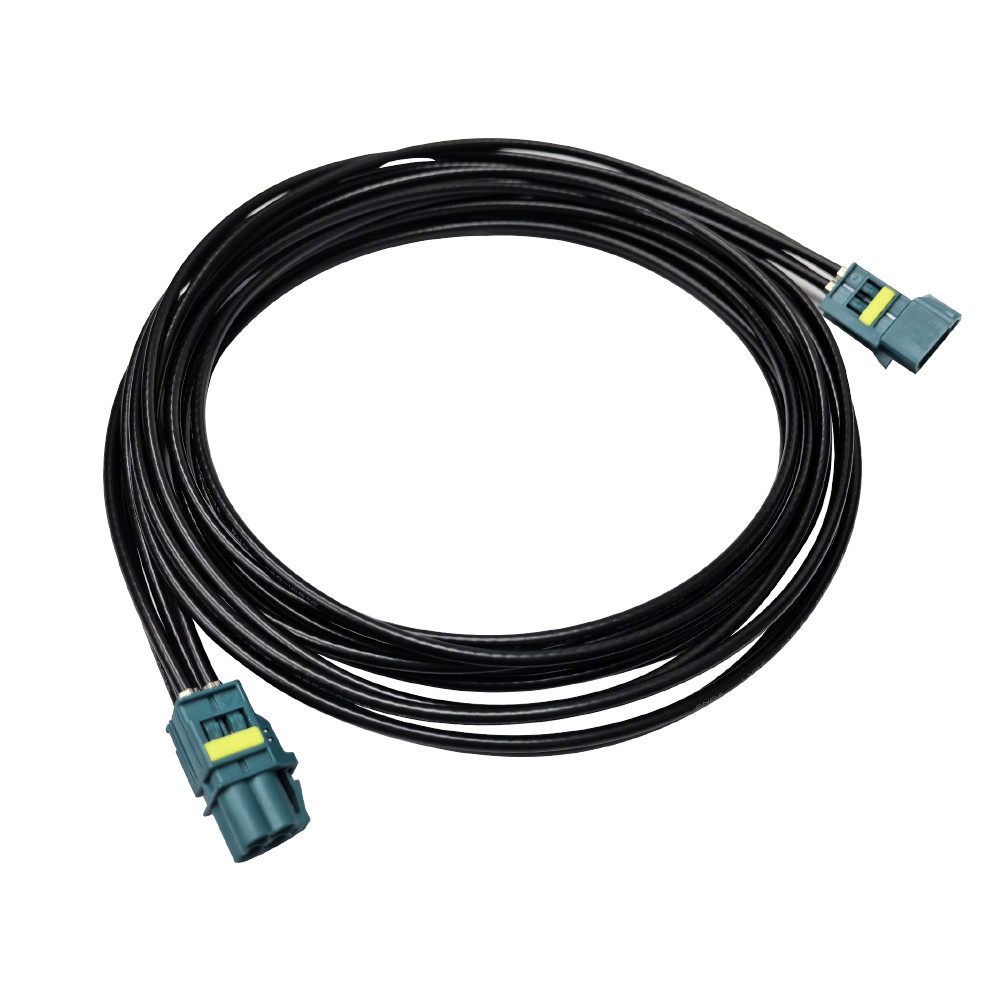

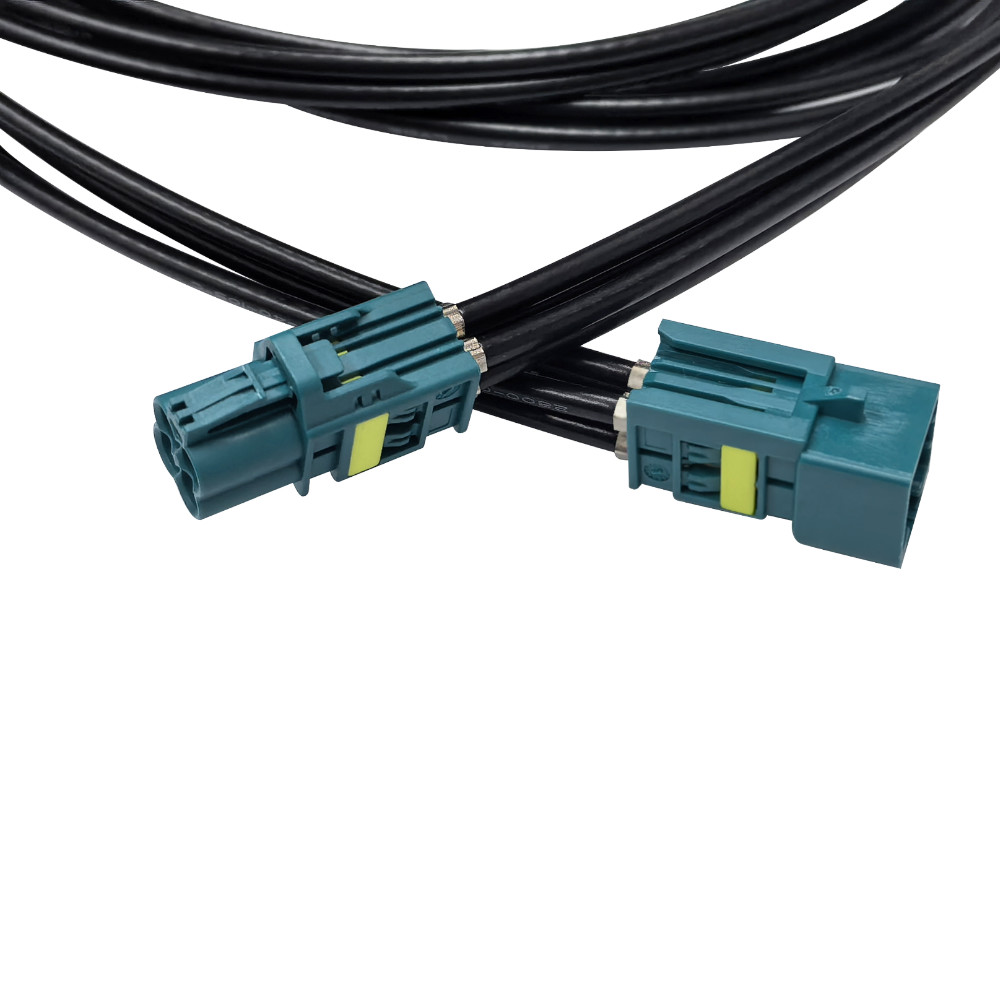

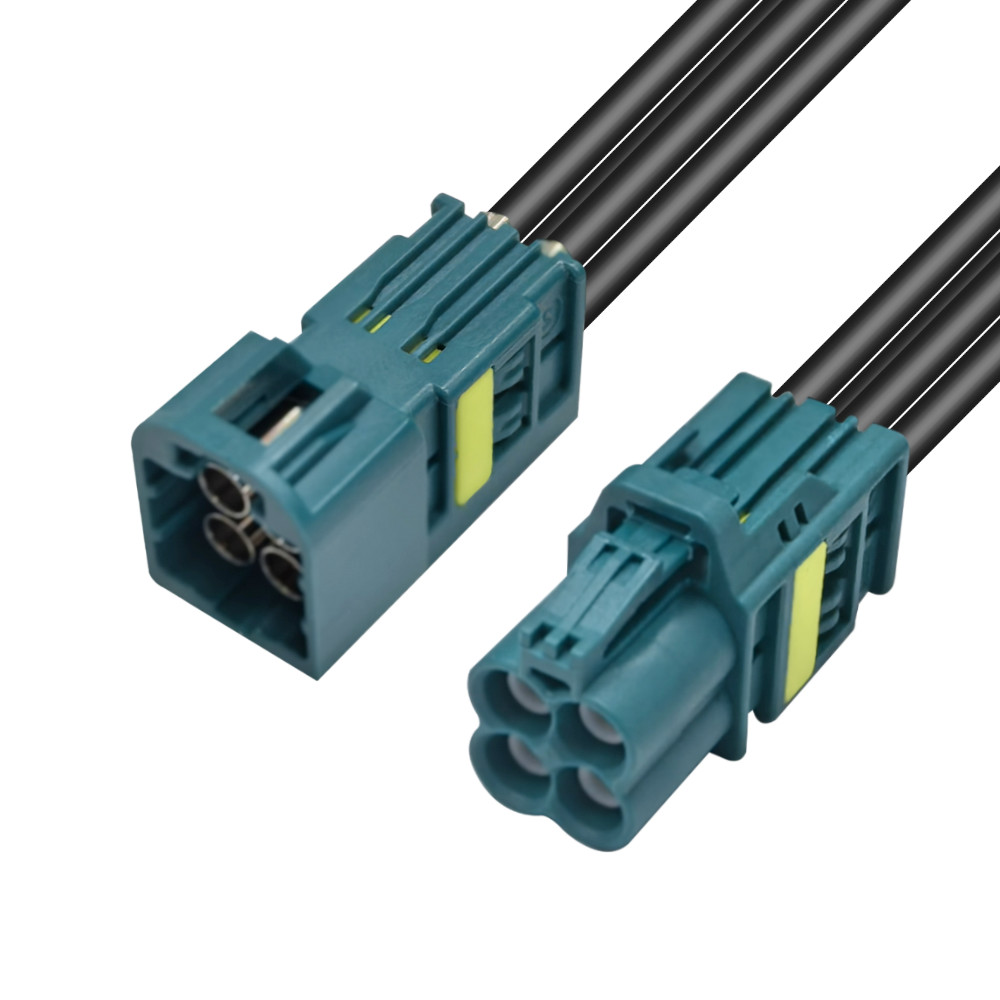

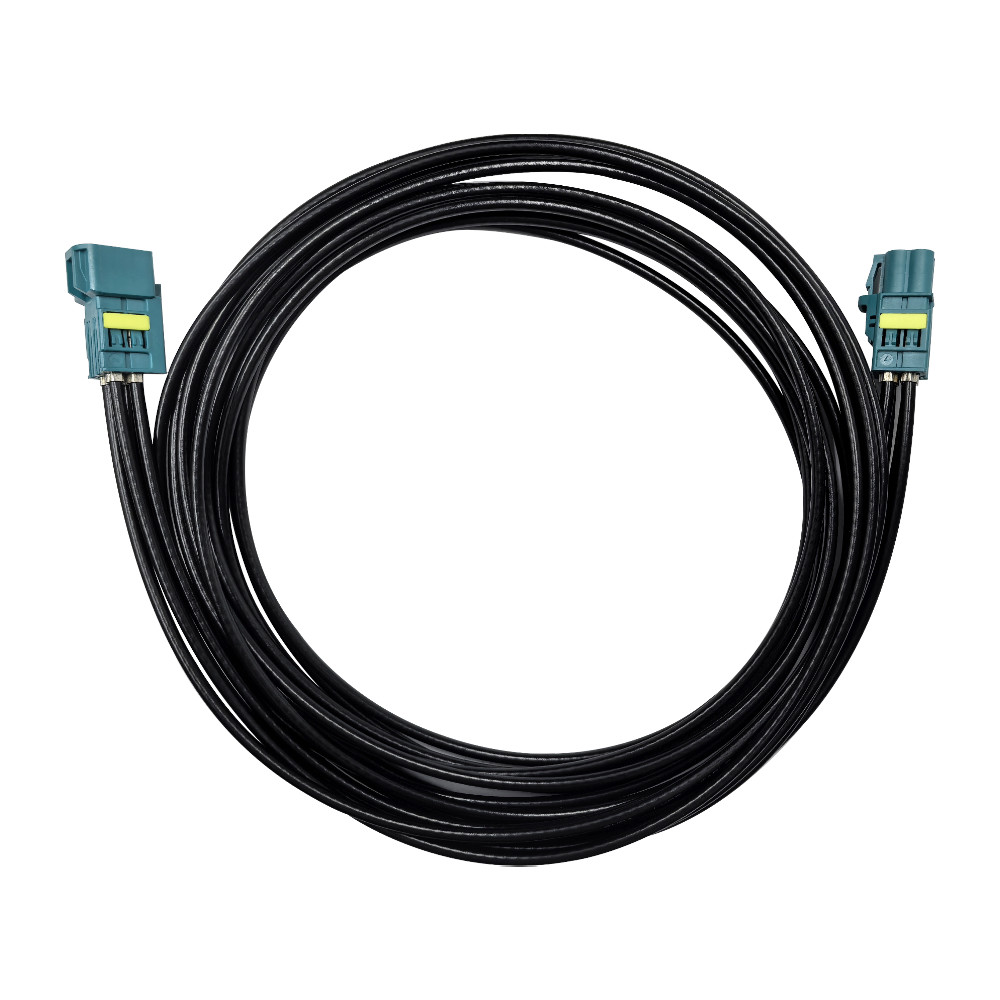

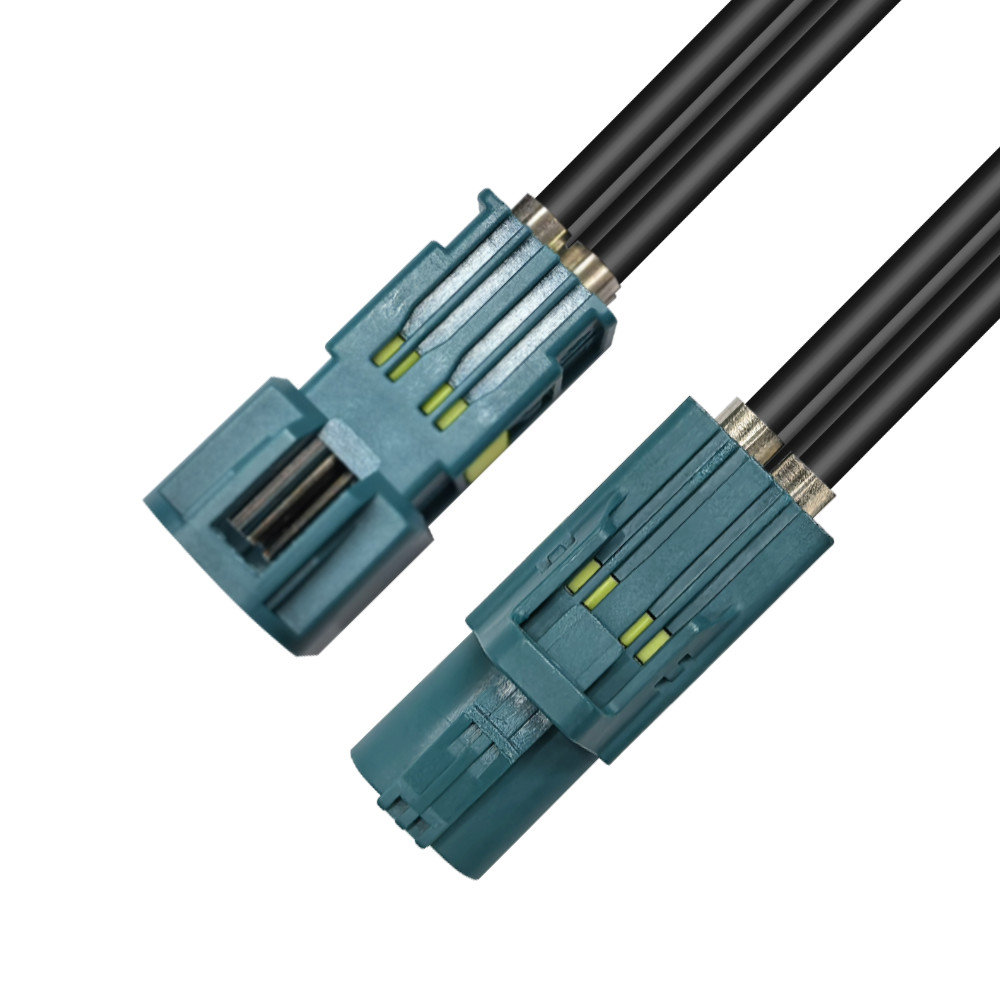

Mini FAKRA Z Code Cable for High-Speed Autonomous Driving Communication

The Mini FAKRA (HFM) Cable is a cutting-edge automotive connector solution tailored for high-speed, high-frequency data transmission. In contrast to conventional FAKRA connectors, HFM (High-Speed FAKRA-Mini) provides a remarkable up to 80% reduction in space requirements, making it particularly well-suited for compact automotive layouts.

Capable of accommodating frequencies reaching up to 20 GHz and data rates of up to 28 Gbps, this cable is perfectly suited for contemporary vehicle communication systems. Its lightweight and cost-effective design contribute to increased installation adaptability, all while upholding exceptional signal integrity and mechanical resilience.

• Impedance: 50 Ω for stable signal transmission
• Wide Frequency Range: DC to 20 GHz for high-frequency applications
• High Data Rates: Supports up to 28 Gbps, ideal for real-time data transfer
• Compact & Space-Saving: 80% smaller than standard FAKRA, maximizing installation efficiency
• Durability: Designed for at least 25 mating cycles
• Reliable & Robust: High mechanical strength for long-term automotive use
• Modular System: Optimized design for reduced weight and cost
• Optional CPA (Connector Position Assurance): Ensures secure connections

• Impedance: 50Ω
• Frequency Range (depends on cable): DC to 20 GHz
• Center Contact Resistance: ≤ 15 mΩ
• Outer Contact Resistance: ≤ 5 mΩ
• Test Voltage: ≤ 800 V rms
• Working Voltage: ≤ 60 V DC
• Mating Cycles (Standard, Non-Waterproof): ≥ 25
• Temperature Range: -40°C to +105°C

• Autonomous Driving: Enables vehicles to operate independently and communicate for safe navigation.
• ADAS: Uses real-time sensor data to enhance safety and driver awareness.
• Navigation Systems: Provides accurate GPS and real-time route guidance.
• Infotainment Systems: Supports high-speed audio and video streaming for an enhanced experience.
• Rear-Seat Entertainment: Ensures seamless in-car entertainment for passengers.
• Vehicle Internet: Maintains continuous connectivity for smart car features.
