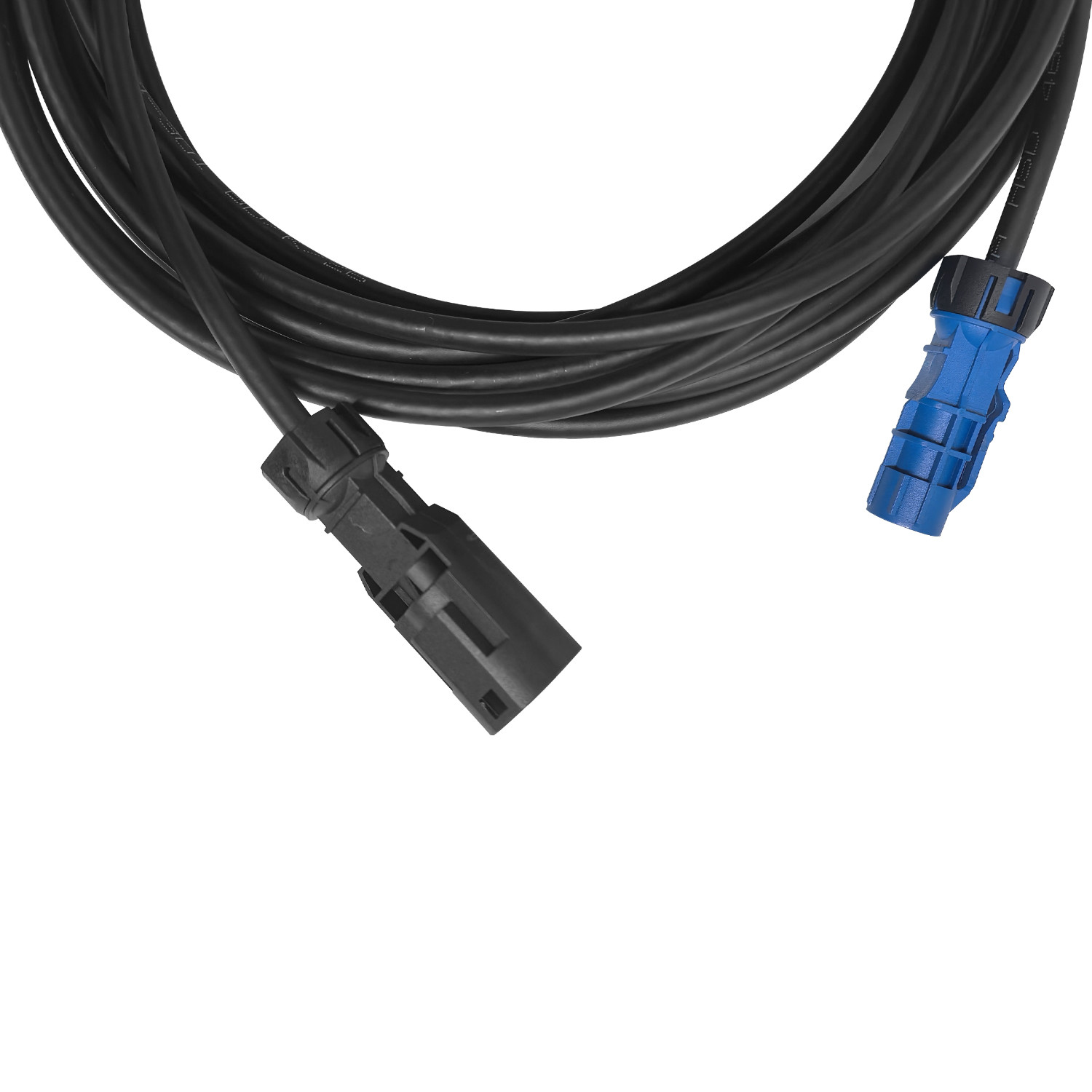

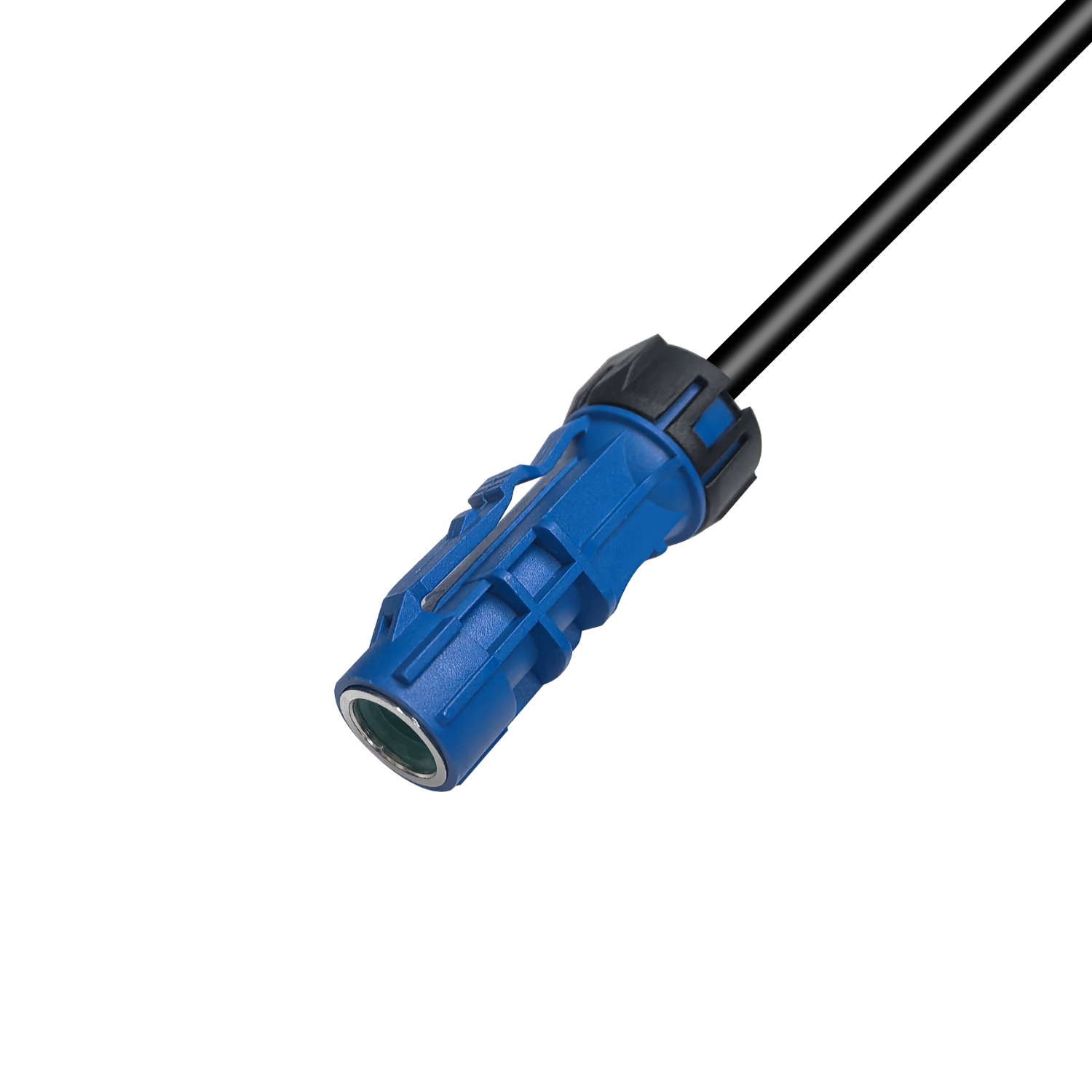

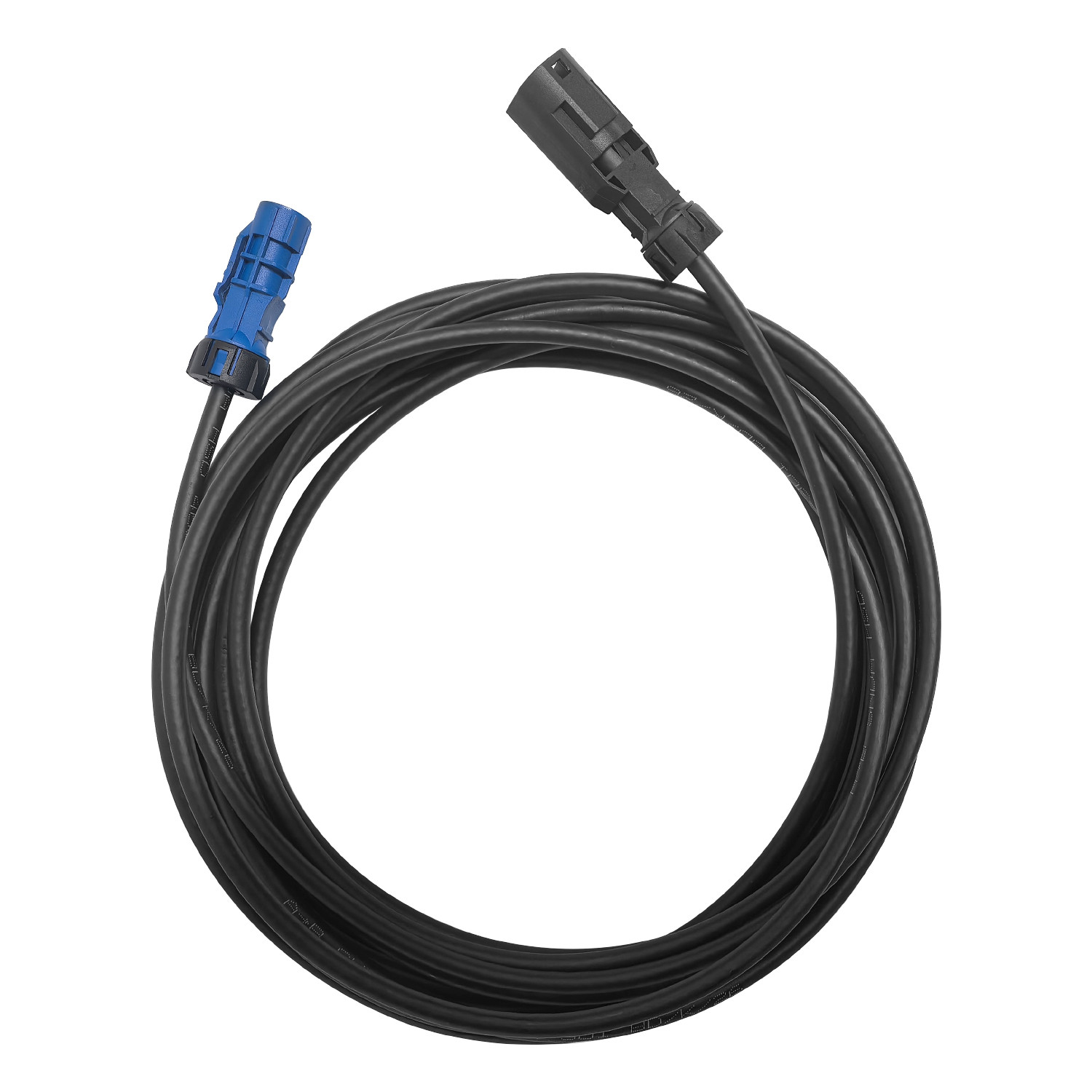

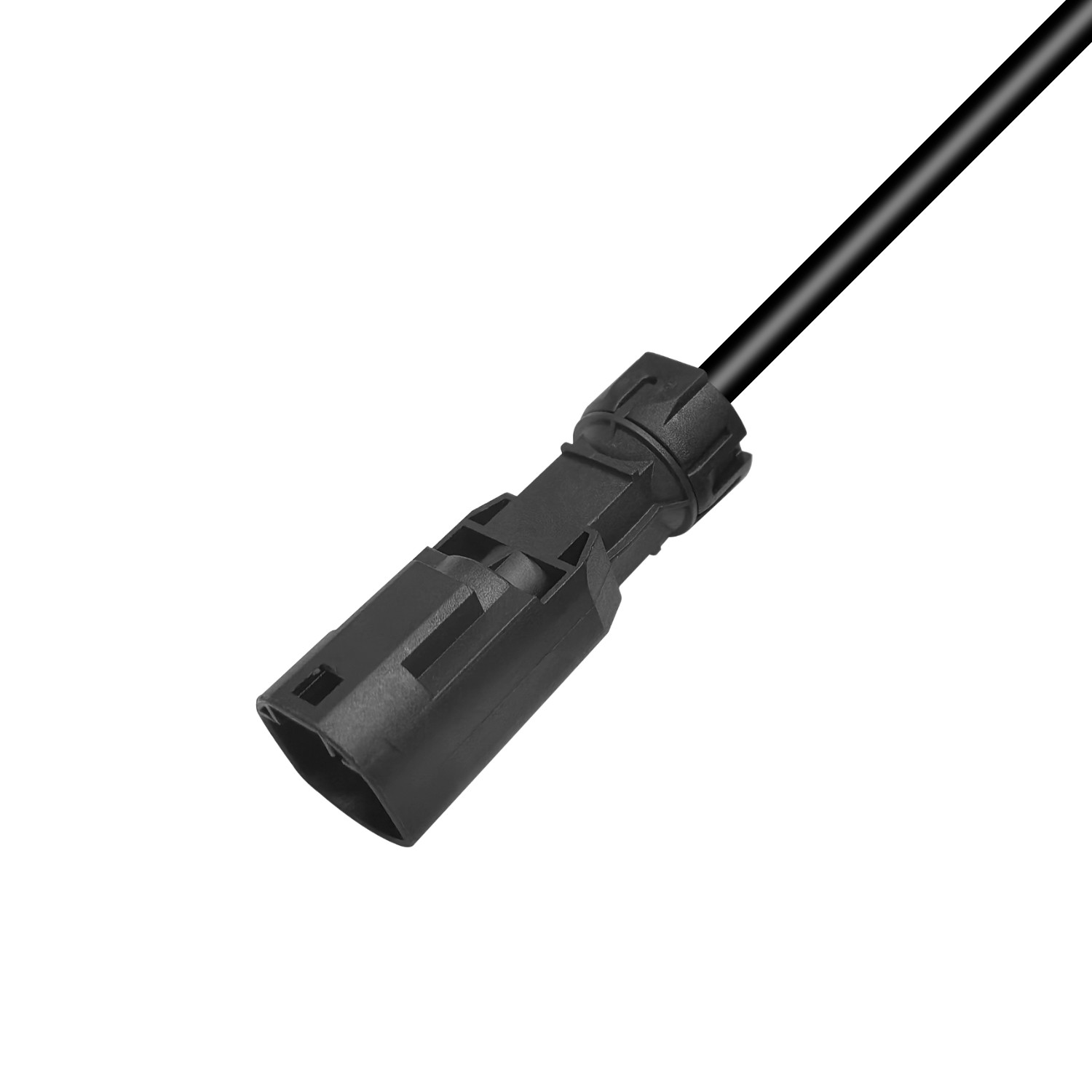

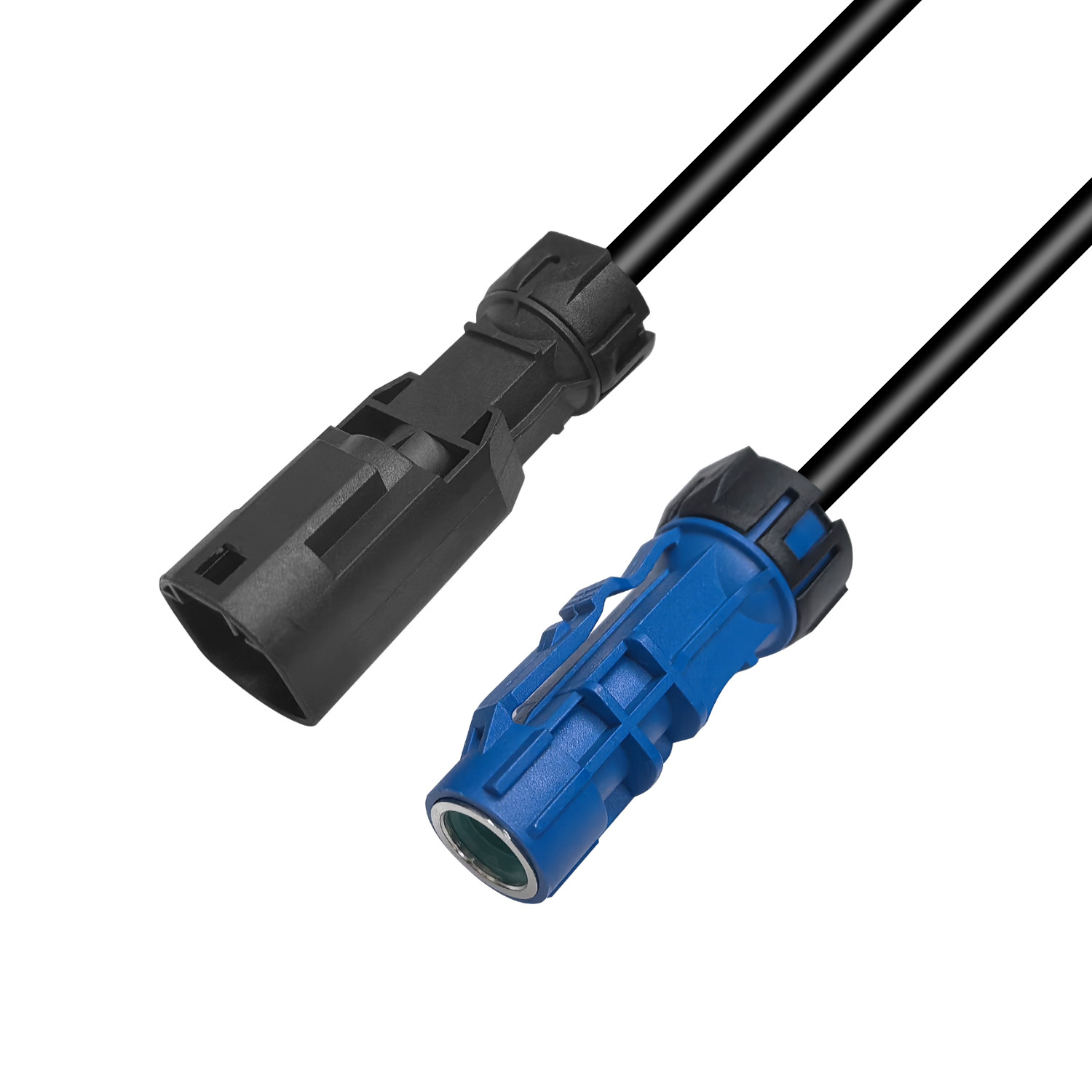

Waterproof HSD Cable for High-Speed Automotive Data Transmission
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HSD Cable | Temperature Rating | -40°C To +125°C |
|---|---|---|---|
| Cable Type | Coaxial | Frequency Range | DC To 6GHz |
| Impedance | 100 Ohm | Connector Pin | 4Pin |
| Cable Length | Customizable |
Product Description
Product Description:
The Waterproof HSD (High-Speed Data) Cable is specifically engineered for automotive applications that require high-speed data transmission while maintaining consistent impedance control.
This interconnect system is designed to ensure optimal performance by minimizing crosstalk and external interference through the utilization of low-voltage differential signaling (LVDS).
With a 100-ohm fully shielded twisted-pair four-core cable, this waterproof HSD cable is perfectly suited for use in rugged environments, all the while preserving reliable data integrity.
It is crafted to address the needs of automotive applications including LVDS cameras, USB, and IEEE 1394, and features mechanical keying, secure latching, color-coded options, and a compact design that complies with global automotive standards.
Features:
- Secure Locking: Primary and secondary locks ensure a stable connection.
- Stable Signal: Crimp connection provides consistent signal transmission.
- Pin Protection: Plastic domes prevent plug pin damage.
- Strong Retention: High cable retention force enhances durability.
- Misconnection Prevention: Multiple keying options improve accuracy.
- Waterproof & Robust: Reliable performance in harsh environments.
Technical Parameters:
- Impedance: 100Ω
- Frequency range (depends on cable type): DC to 6 GHz
- Outer contact resistance: ≤ 7.5 mΩ
- Test voltage: ≤ 250 V rms
- Working voltage: ≤ 60 V rms
- Mating cycles (waterproof): ≥ 5
- Temperature range: -40°C to +105°C
Applications:
- Automotive Electronics: Sensors, control units, driver assistance, and infotainment.
- Telecom Systems: Reliable communication for radio base stations.
- Digital Infotainment: In-car entertainment and navigation.
- USB (1.0, 2.0, 3.0): High-speed data transfer and connectivity.
- LVDS: Stable long-distance data transmission.
- Ethernet: High-speed network connections.
- IEEE 1394 (Firewire): Fast data transfer for multimedia devices.
- GVIF: High-definition video transmission.
HSD Coding:
Customization:
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
- We're all about embracing OEM and ODM orders. Got a unique design or customization in mind? Just let us know, and we'll bring your vision to life!
- Samples? On the house! Yep, they won't cost you a dime. Just cover the courier fee, and we'll get those samples to you pronto.
- Shipping options? You've got it! We've got a range of logistics methods to choose from, so you can pick the one that suits you best.
- Need it fast? No problemo! We're known for our speedy delivery and top-notch service. You'll have your order in no time, with the quality service you deserve.
