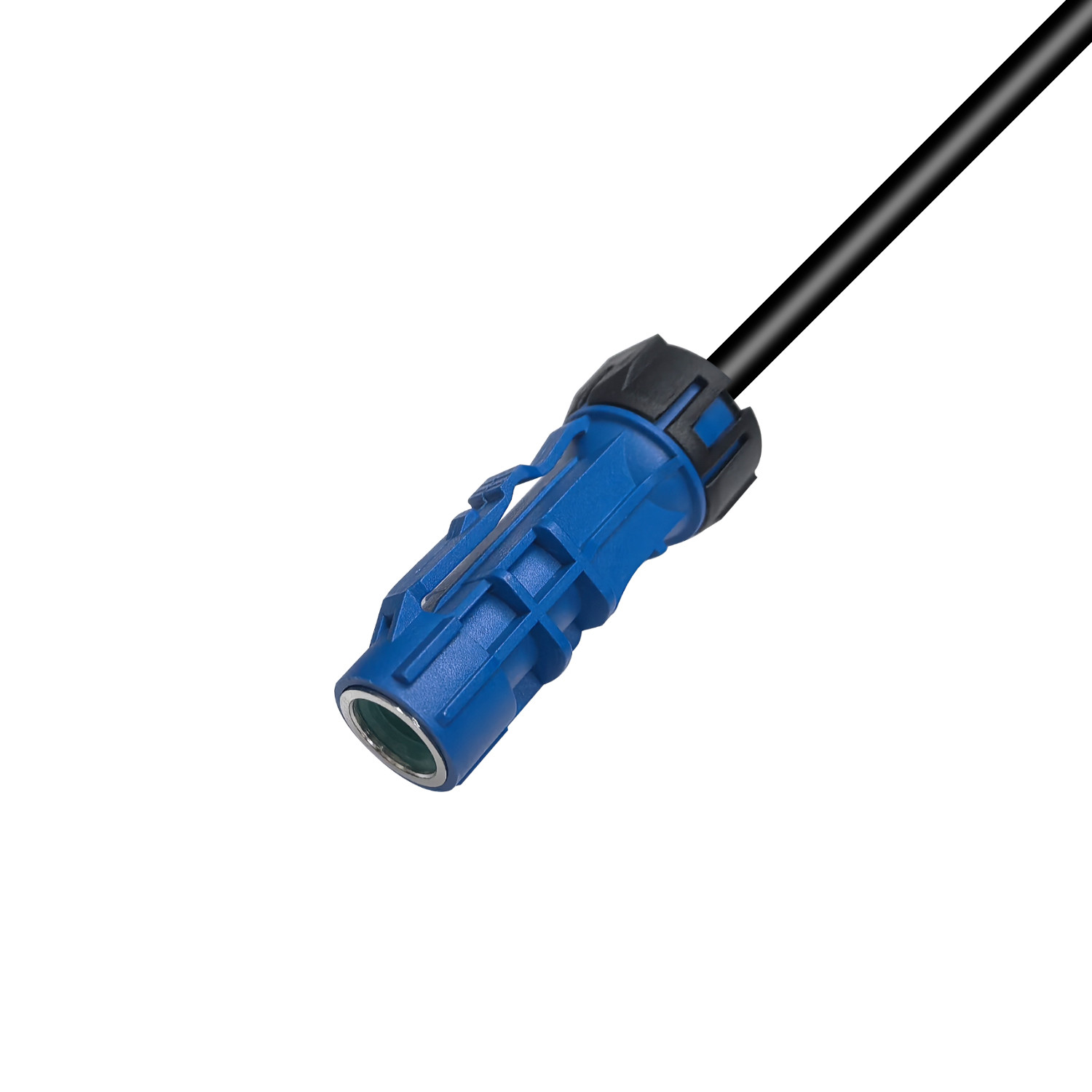

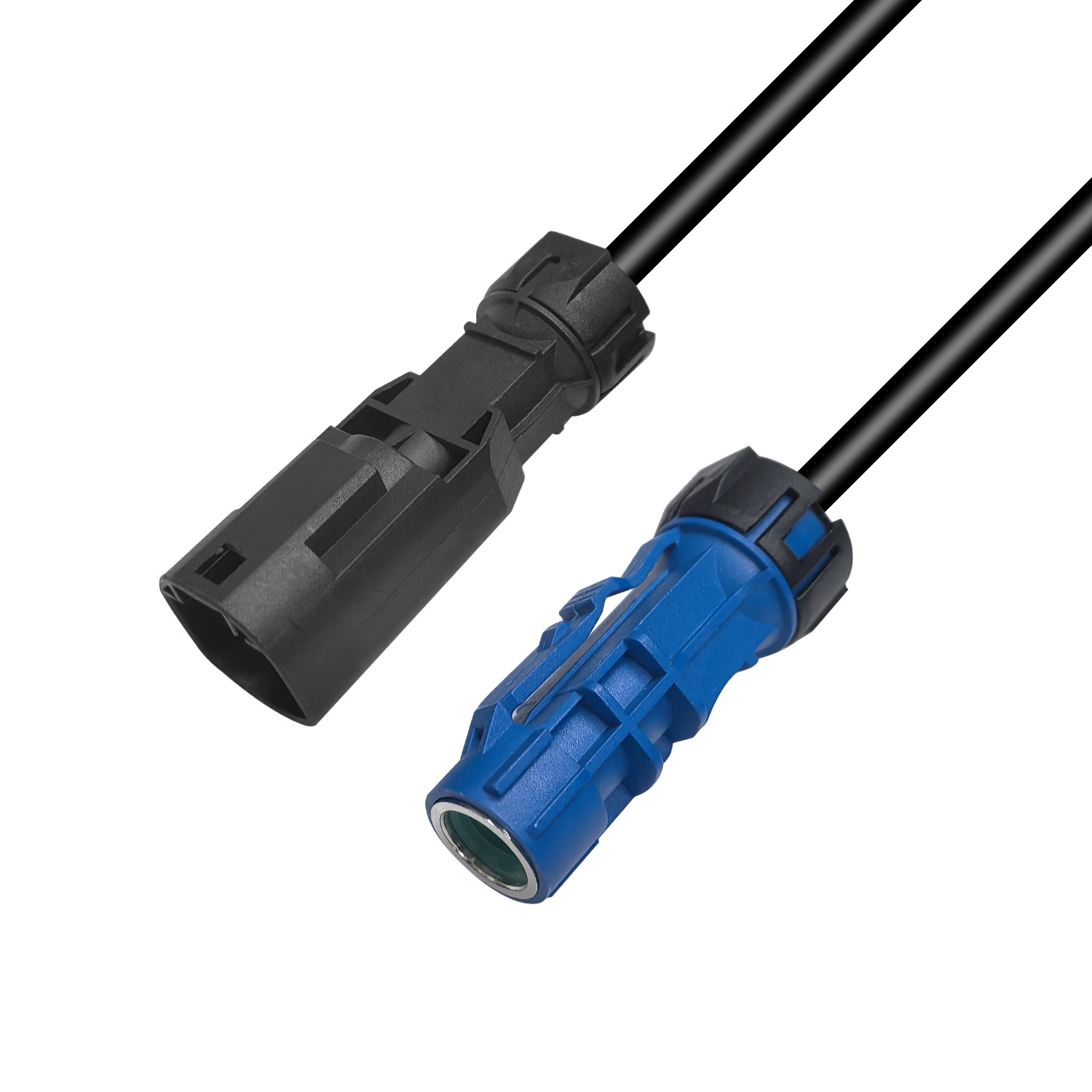

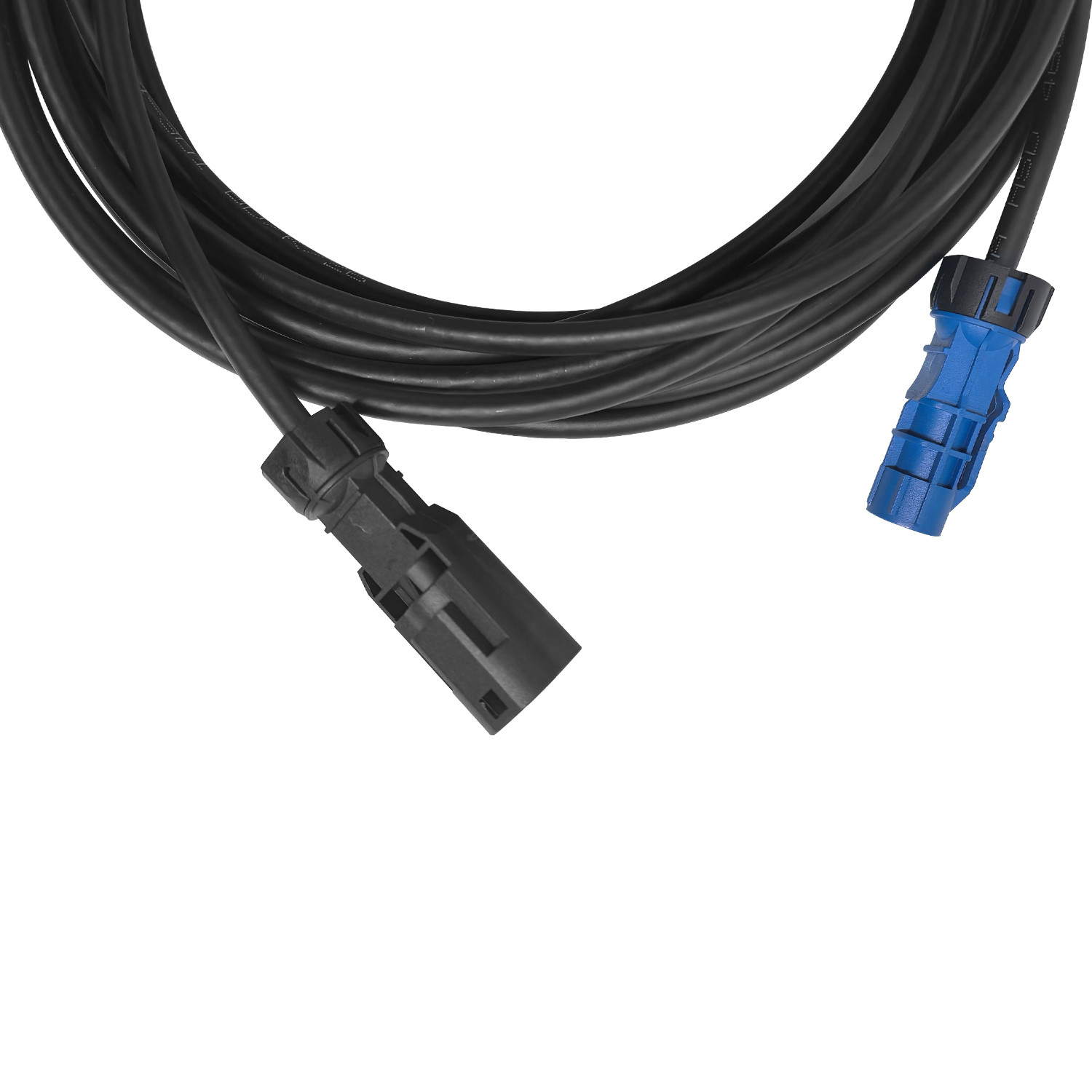

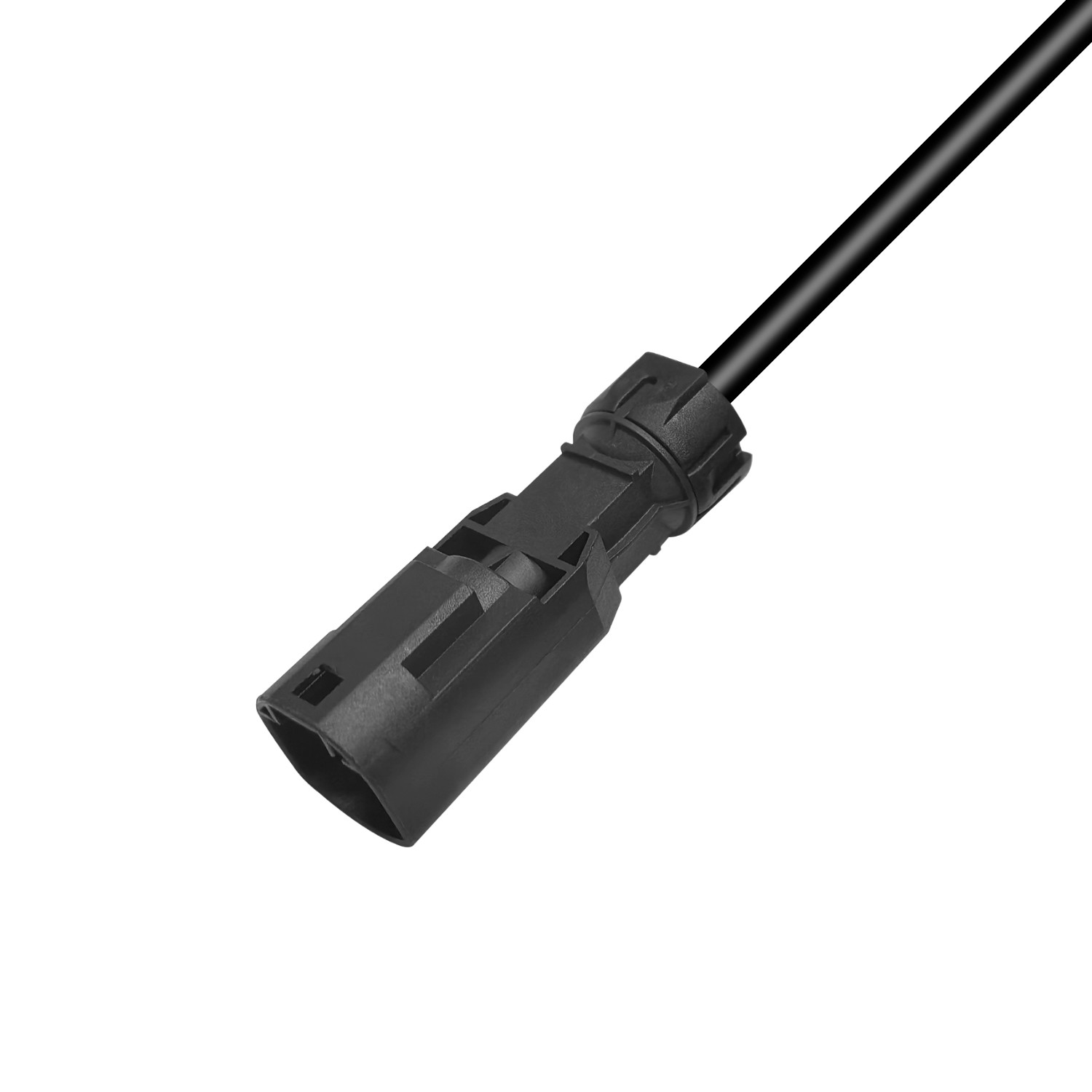

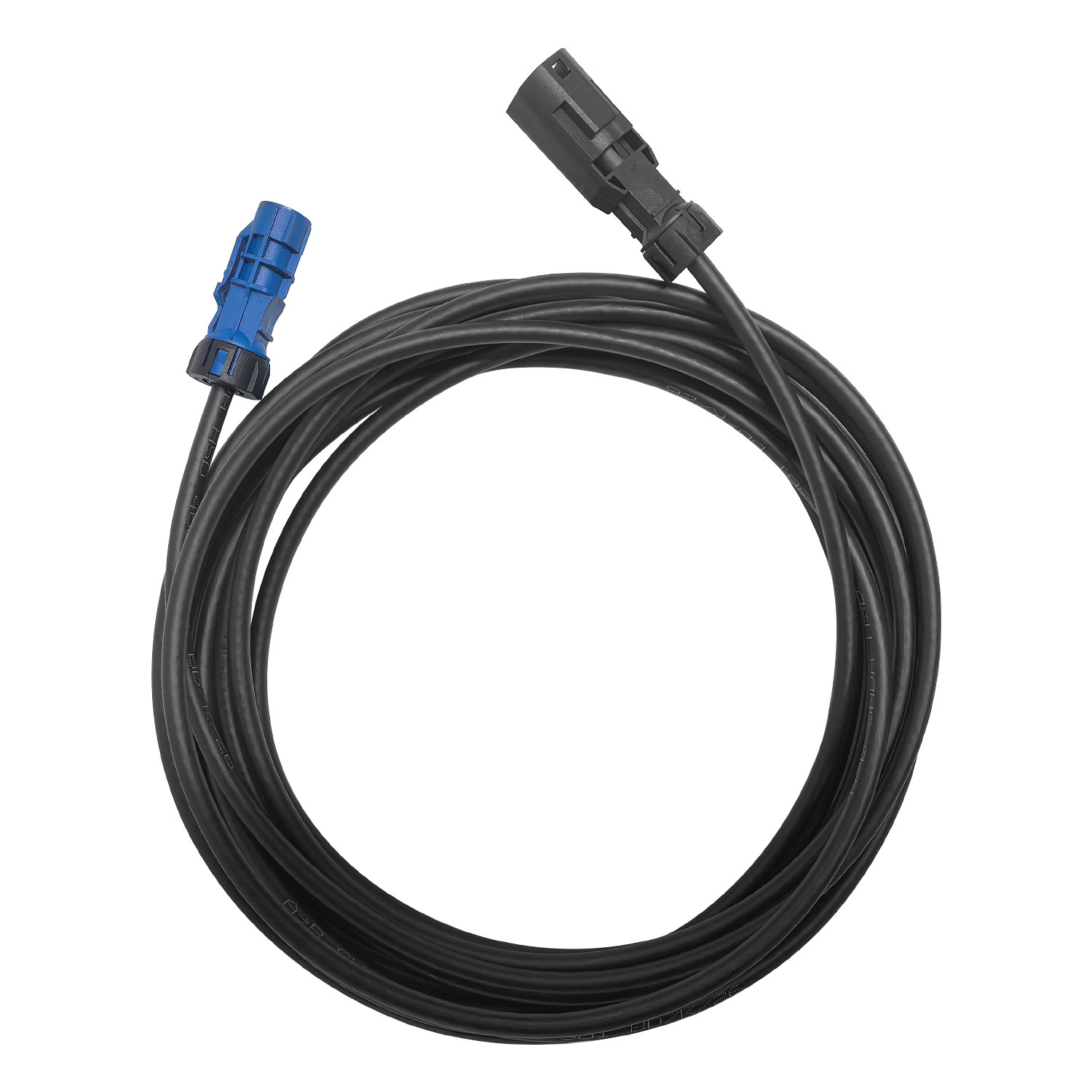

Waterproof HSD Cable for LVDS Camera and Sensor Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HSD Cable | Frequency Range | DC To 6GHz |
|---|---|---|---|
| Temperature Rating | -40°C To +125°C | Connector Pin | 4Pin |
| Impedance | 100 Ohm | Cable Type | Coaxial |
| Cable Length | Customizable |
Product Description
Product Description:
The Waterproof HSD (High-Speed Data) Cable has been specifically crafted for automotive applications that necessitate high-speed data transmission while maintaining consistent impedance control. This advanced interconnect system is engineered to ensure peak performance by effectively minimizing crosstalk and external interference through the use of low-voltage differential signaling (LVDS).
Constructed with a 100-ohm fully shielded twisted-pair four-core cable, the waterproof HSD cable is a durable solution suitable for challenging environments, all the while upholding the integrity of data transmissions. It is tailored to meet the rigorous requirements of automotive applications, including LVDS cameras, USB, and IEEE 1394.
The cable design includes features like mechanical keying, secure latching, color-coded options, and a compact form factor that comply with global automotive industry standards. This makes it an ideal choice for ensuring reliable and efficient data connectivity in various automotive settings.
Features:
- Secure Locking: Primary and secondary locks enhance stability and protection.
- Stable Signal: Crimp connection ensures reliable transmission.
- Pin Protection: Plastic domes prevent plug pin damage.
- Strong Retention: High cable retention force boosts durability.
- Misconnection Prevention: Multiple keying options improve accuracy.
- Waterproof & Durable: Reliable performance in harsh conditions.
Technical Parameters:
- Impedance: 100Ω
- Frequency range (depends on cable type): DC to 6 GHz
- Outer contact resistance: ≤ 7.5 mΩ
- Test voltage: ≤ 250 V rms
- Working voltage: ≤ 60 V rms
- Mating cycles (waterproof): ≥ 5
- Temperature range: -40°C to +105°C
Applications:
- Automotive Electronics: Enable advanced vehicle features.
- Telecom Industries: Support efficient communication networks.
- Digital Infotainment: Provide multimedia for vehicles and homes.
- Digital Symmetrical Networks: Ensure high-speed, reliable data transfer.
- USB: Versions 1.0, 2.0, and 3.0 offer increasing speed and compatibility.
- LVDS: High-speed, low-power data transmission.
- Ethernet: Connects devices in local and wide-area networks.
- IEEE 1394 (Firewire): High-speed interface for digital devices.
- GVIF: Supports high-definition video transmission.
HSD Coding:
Customization:
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
