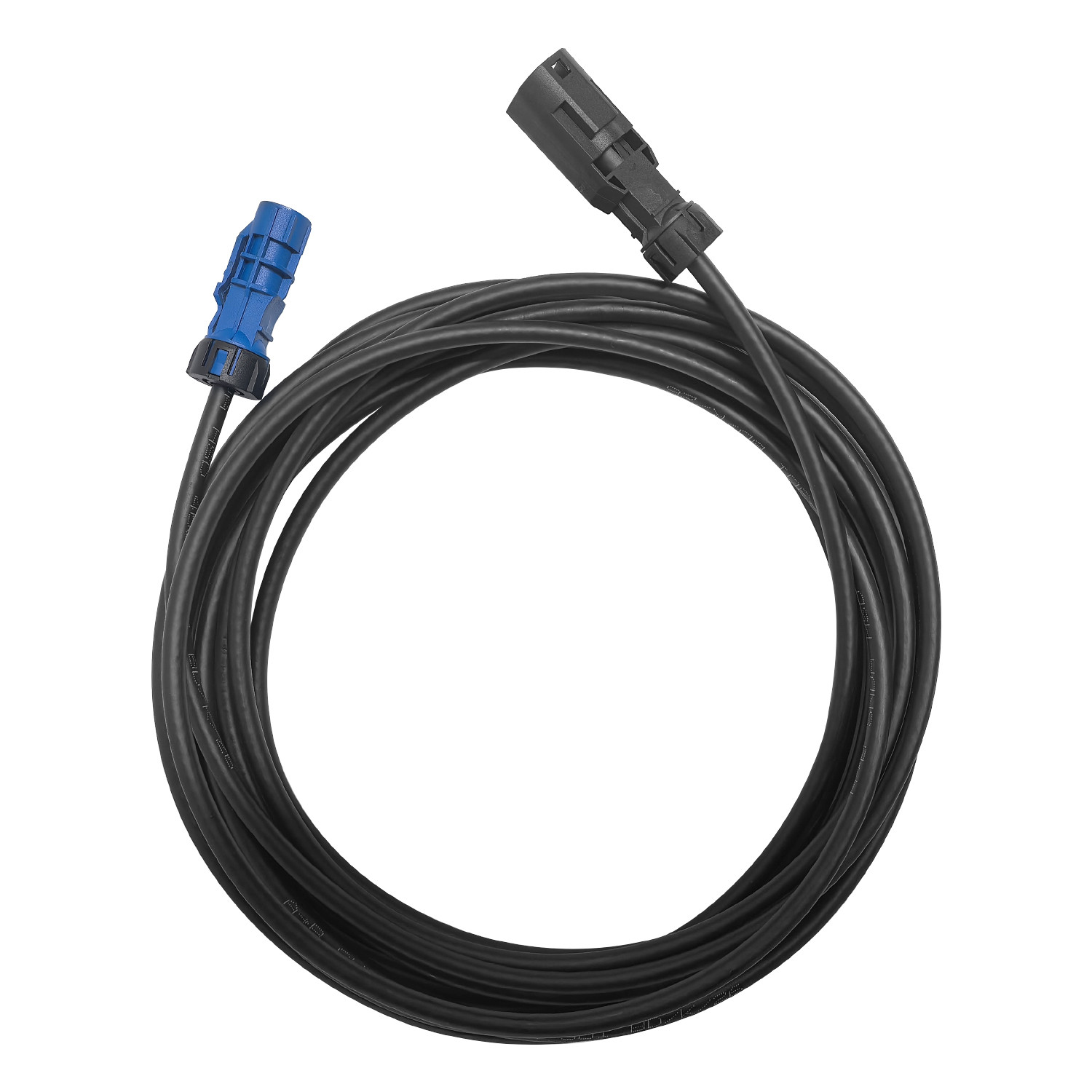

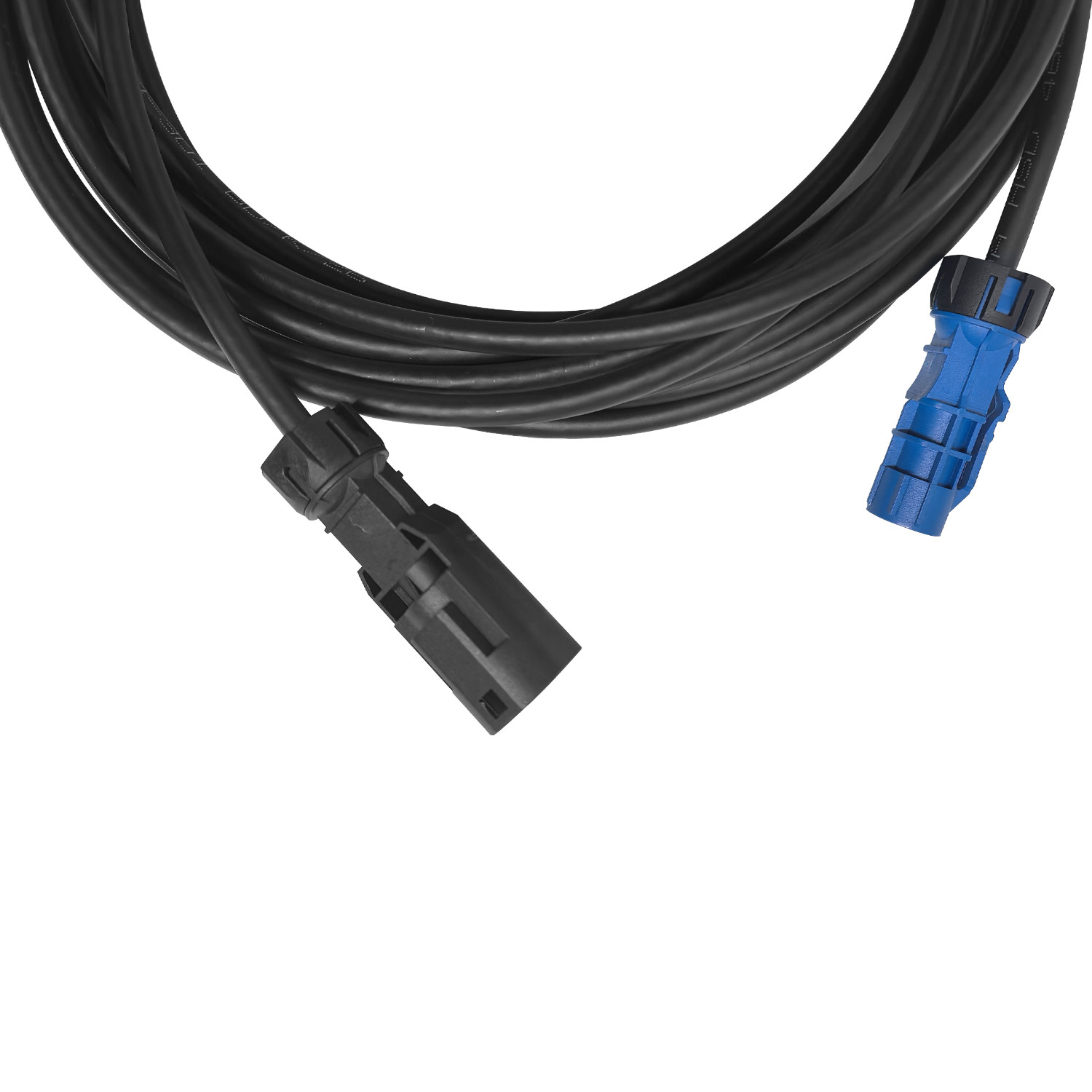

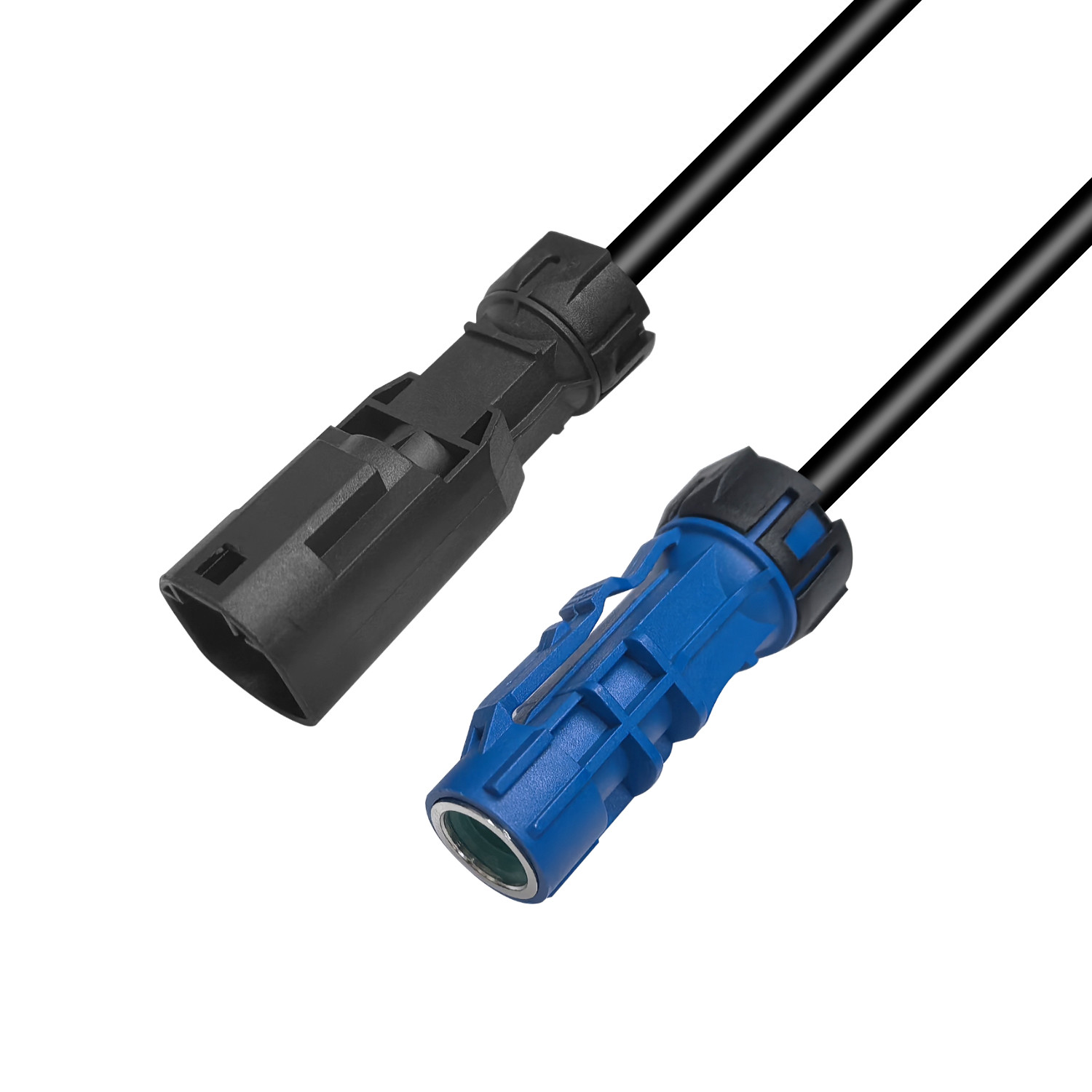

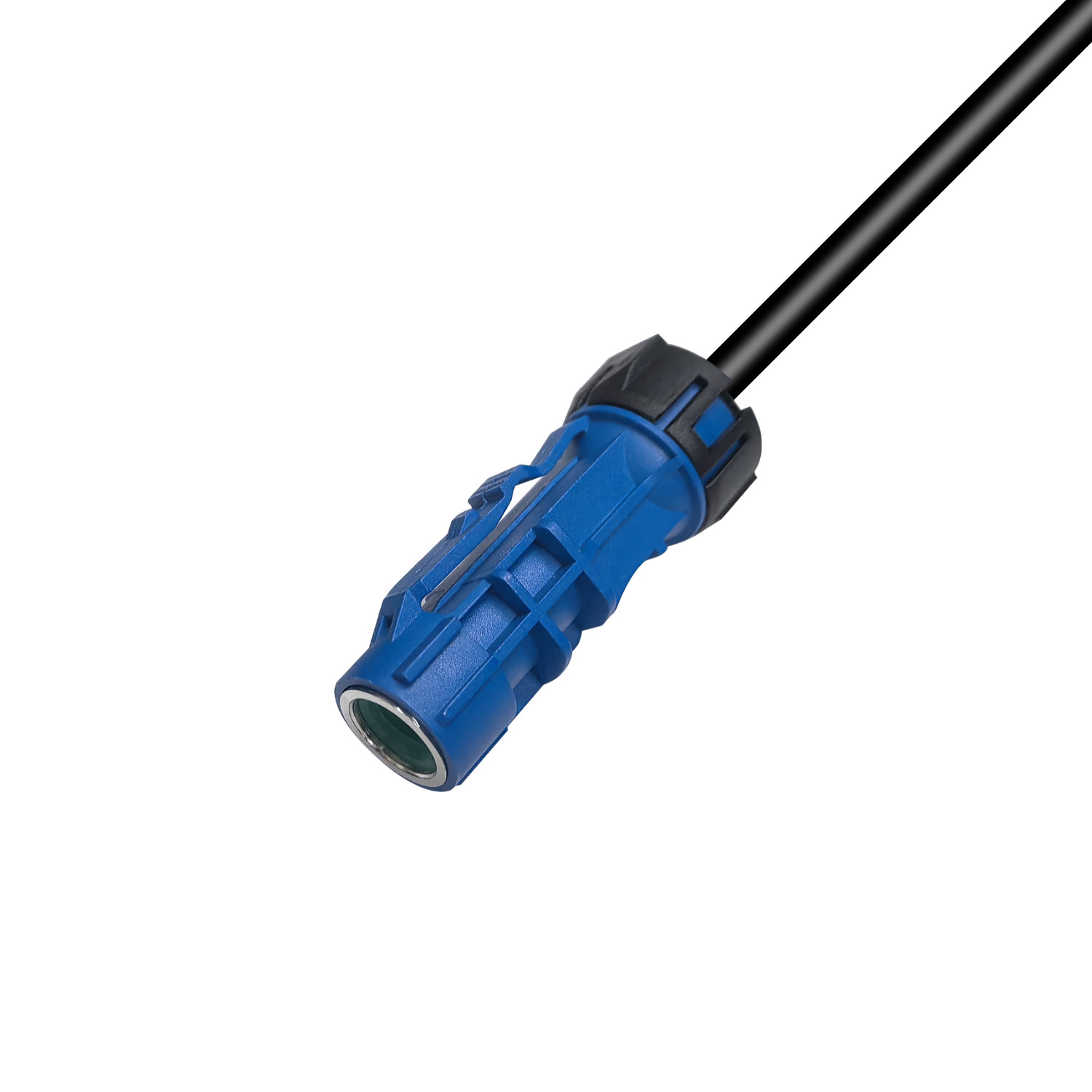

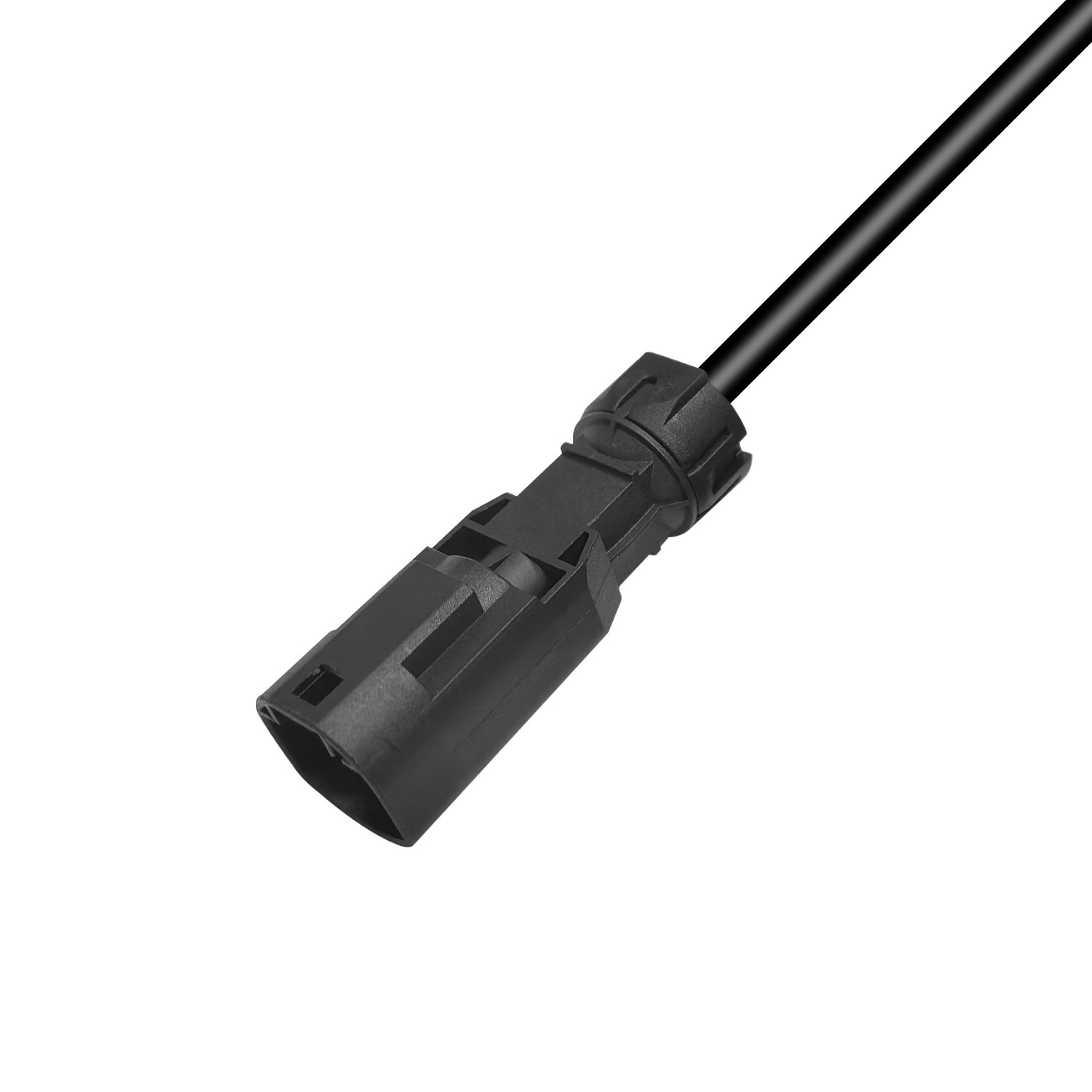

Waterproof HSD Cable for USB, IEEE 1394, and Ethernet Connectivity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HSD Cable | Temperature Rating | -40°C To +125°C |
|---|---|---|---|
| Frequency Range | DC To 6GHz | Cable Type | Coaxial |
| Connector Pin | 4Pin | Impedance | 100 Ohm |
| Cable Length | Customizable |
Product Description
Product Description:
The Waterproof HSD Cable for Automotive Applications
The Waterproof HSD (High-Speed Data) Cable is specifically designed for automotive applications requiring high-speed data transmission with consistent impedance control. This interconnect system ensures optimal performance by preventing crosstalk and external interference through low-voltage differential signaling (LVDS).
Featuring a 100-ohm fully shielded twisted-pair four-core cable, the waterproof HSD cable is a reliable solution for use in harsh environments while maintaining data integrity. It is well-suited for automotive applications such as LVDS cameras, USB, and IEEE 1394.
The cable offers mechanical keying, secure latching, color-coded options, and a compact design suitable for global automotive standards.
Features:
- Primary Locking Mechanism: Ensures secure connections by providing additional stability and strength during use.
- Secondary Locking Mechanism: Offers an extra layer of protection to further enhance the reliability of connections.
- Crimp Connection: Ensures stable signal transmission by allowing for a secure and tight connection between components.
- Plug Pins Protection: Features plastic domes that shield the plug pins from damage, increasing the longevity of the connections.
- Cable Retention Force: Boasts high retention force to enhance durability, preventing accidental disconnections and ensuring a reliable performance.
- Coding Efficiency: Provides high coding efficiency with multiple keying options to prevent misconnections and maintain optimal signal integrity.
- Robust Waterproof Design: Designed to withstand harsh environments, the robust waterproof design ensures reliable performance even in challenging conditions.
Technical Parameters:
- Impedance: 100Ω
- Frequency range (depends on cable type): DC to 6 GHz
- Outer contact resistance: ≤ 7.5 mΩ
- Test voltage: ≤ 250 V rms
- Working voltage: ≤ 60 V rms
- Mating cycles (waterproof): ≥ 5
- Temperature range: -40°C to +105°C
Applications:
- Automotive Electronics: Used for engine control, safety, communication, and entertainment.
- Telecom Industries: Enable communication networks, including radio base stations.
- Digital Infotainment: Provides multimedia, navigation, and entertainment.
- Digital Symmetrical Networks: Ensure stable, high-speed data transfer.
- USB: Evolving standards for fast data transfer and power supply.
- LVDS: High-speed, low-power data transmission.
- Ethernet: Connects devices in LANs efficiently.
- IEEE 1394 (Firewire): High-speed data transfer for various devices.
- GVIF: Transmits high-resolution video signals.

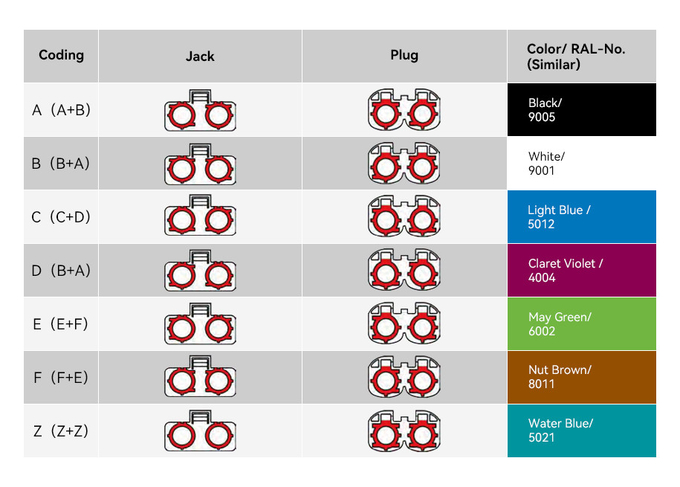

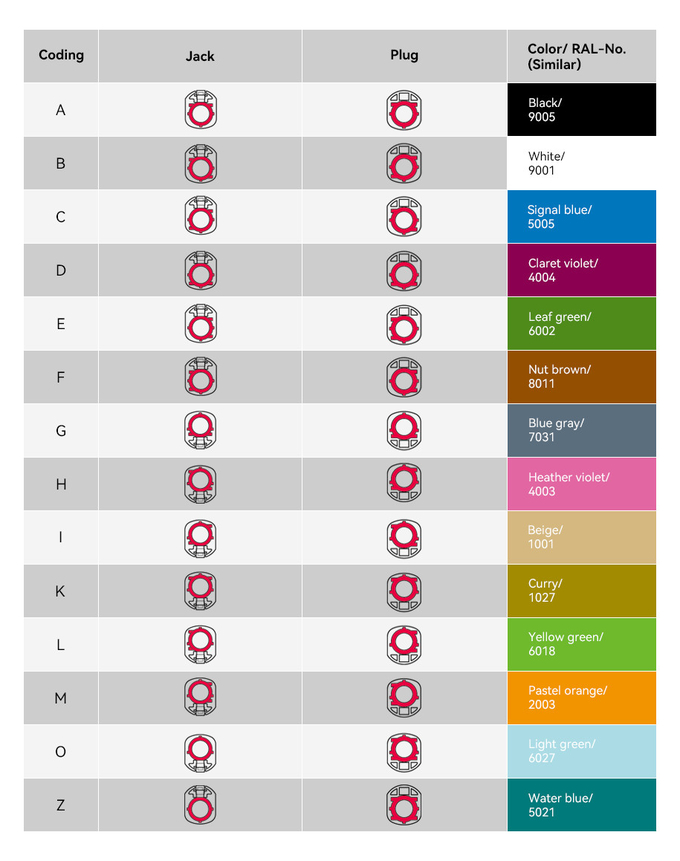

HSD Coding:
Customization:
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
