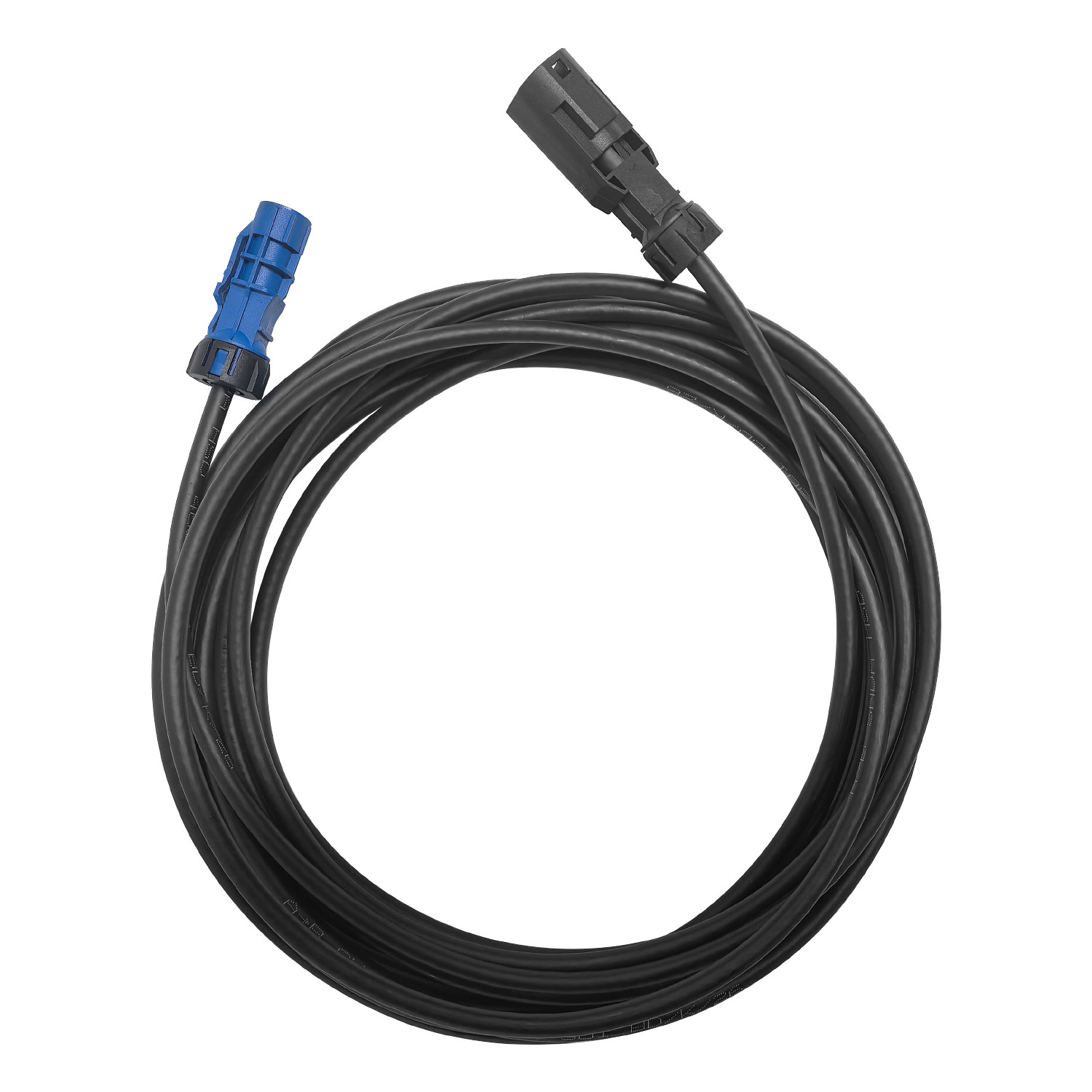

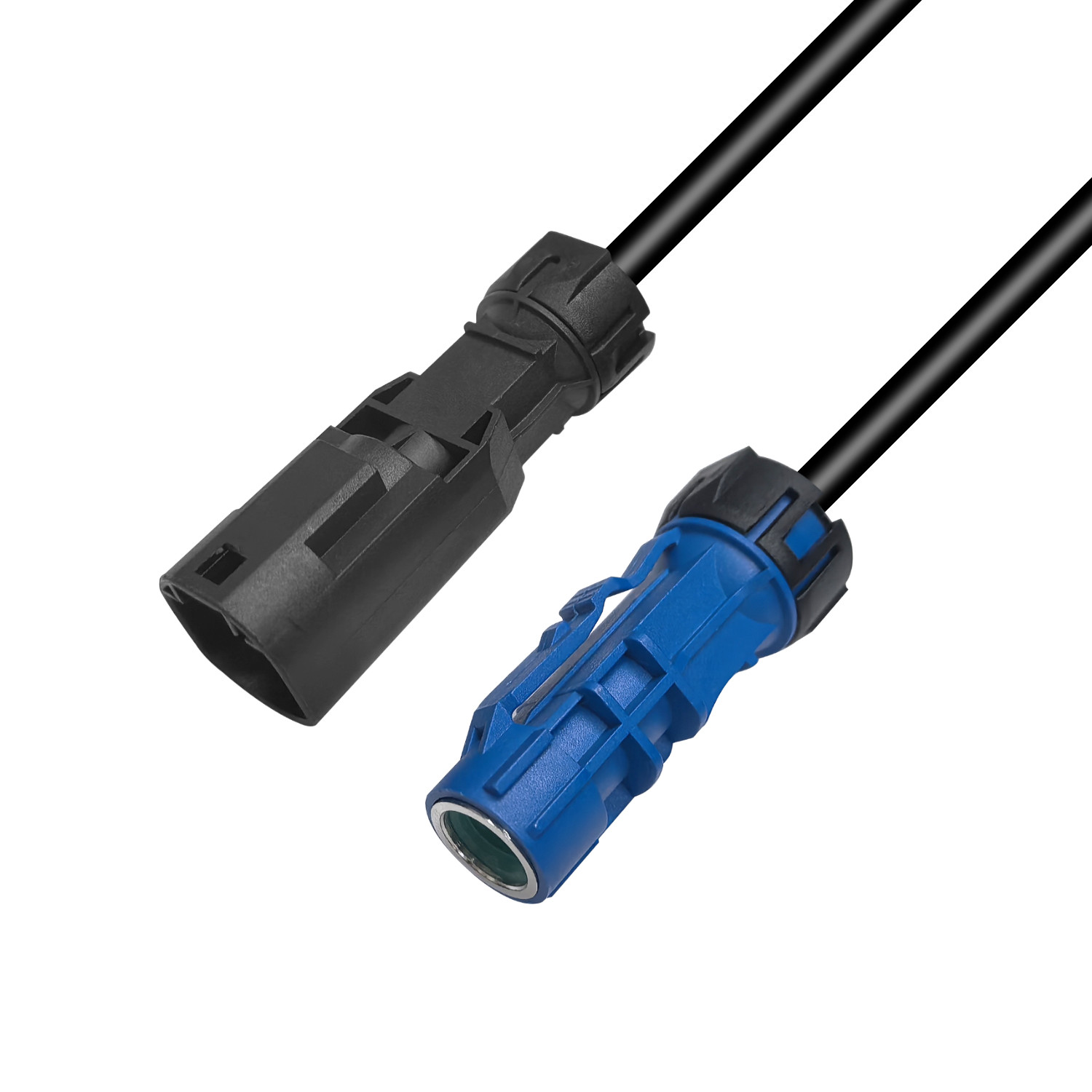

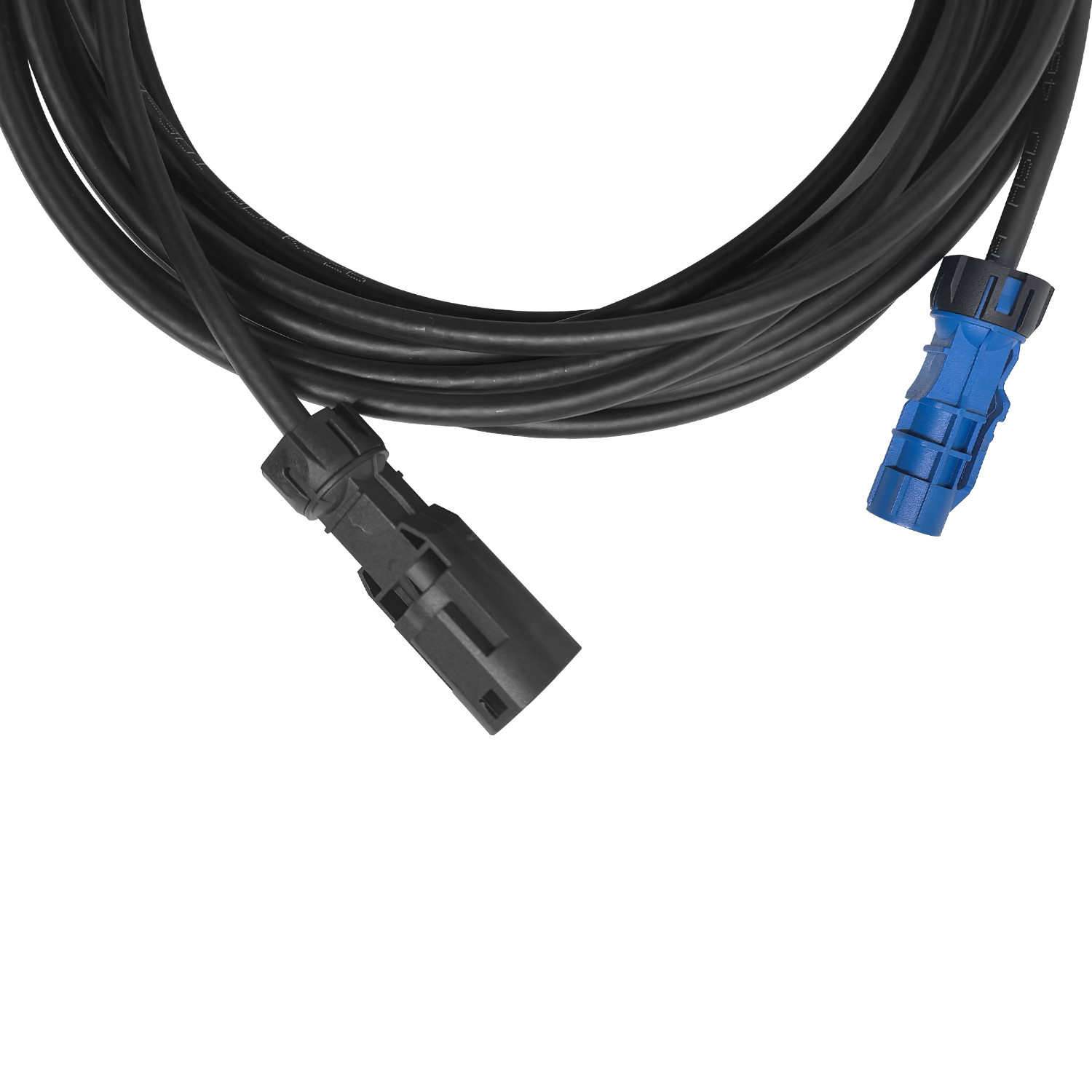

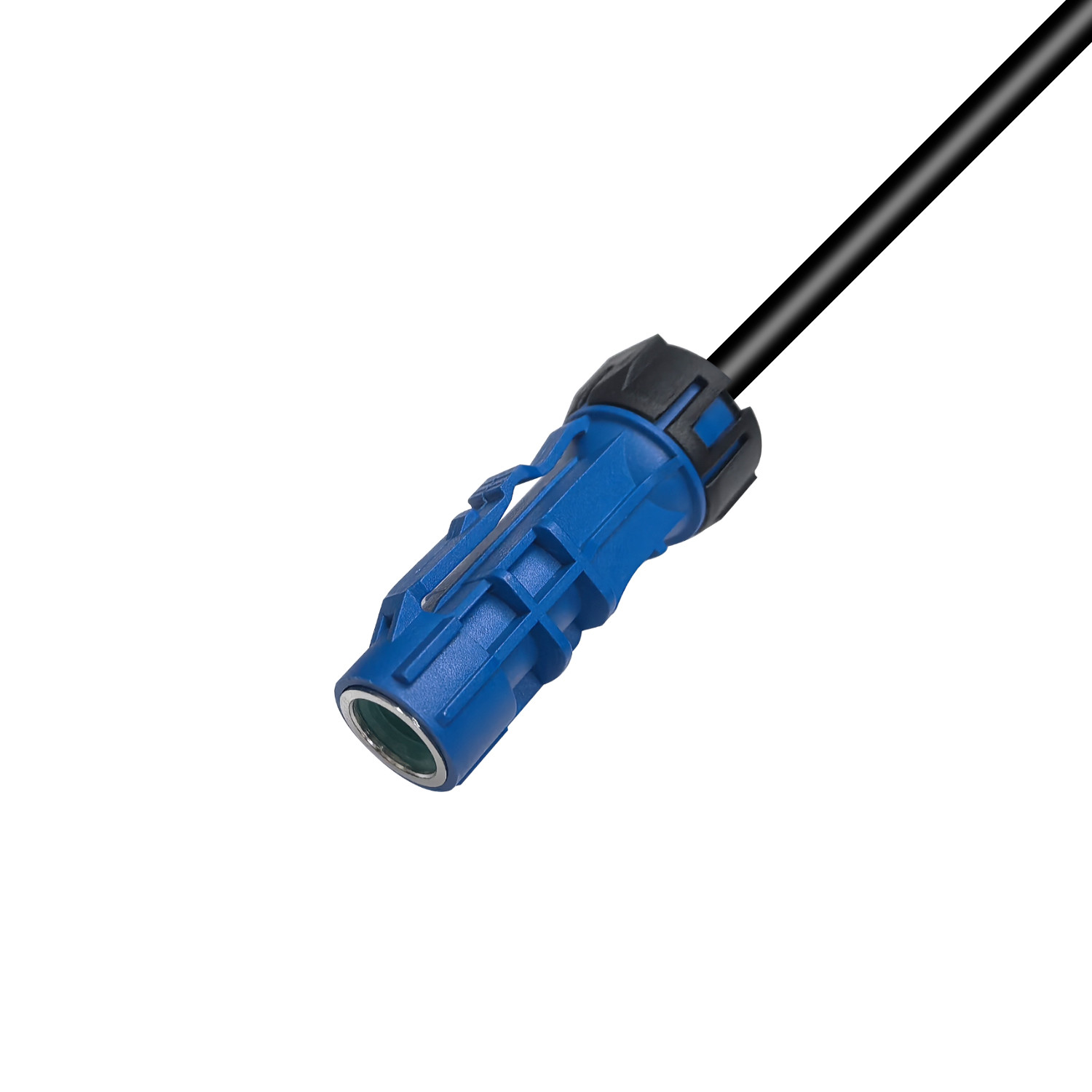

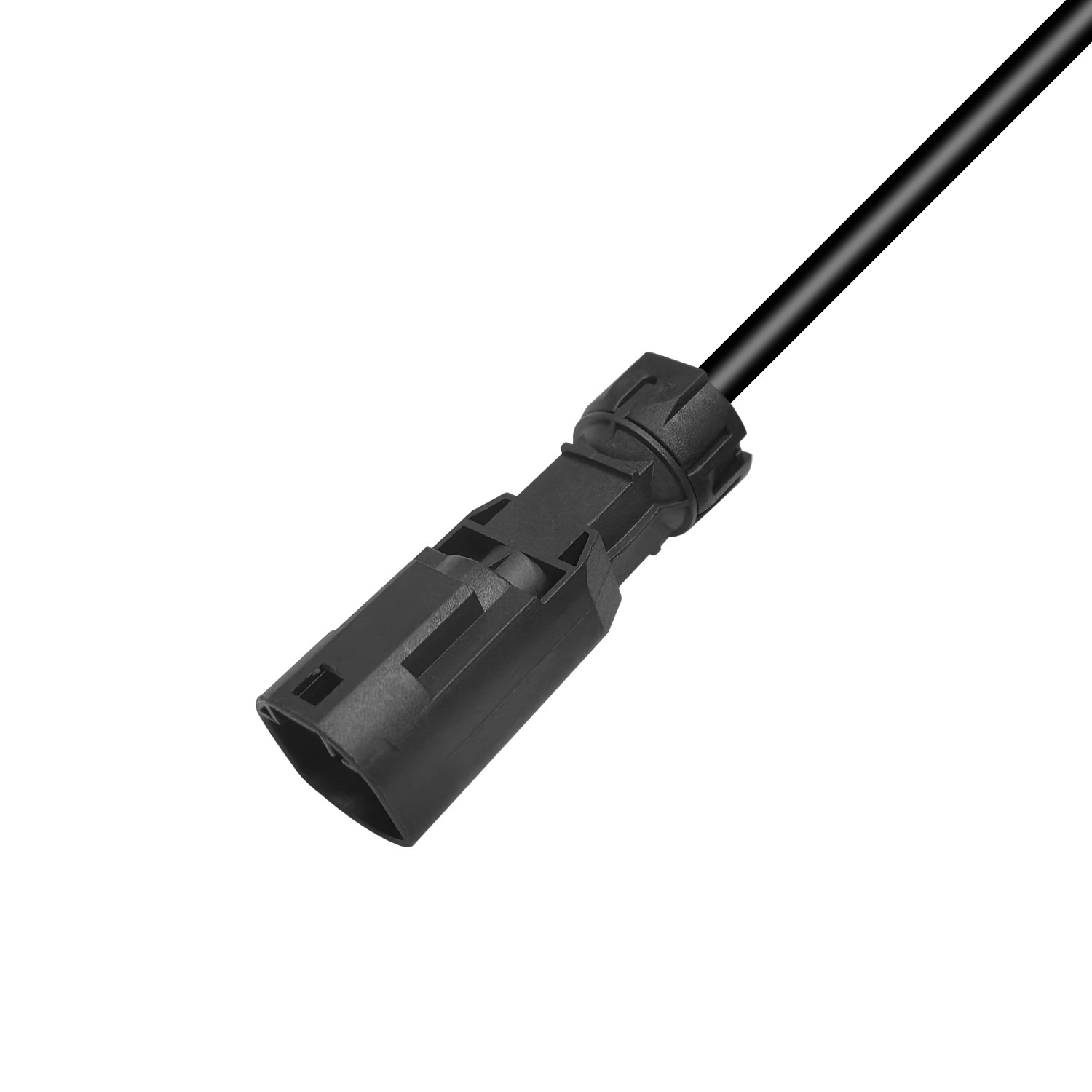

Waterproof HSD Cable for High-Speed Digital Video Transmission
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HSD Cable | Connector Pin | 4Pin |
|---|---|---|---|
| Impedance | 100 Ohm | Temperature Rating | -40°C To +125°C |
| Frequency Range | DC To 6GHz | Cable Type | Coaxial |
| Cable Length | Customizable |
Product Description
Product Description:
Welcome to the Waterproof HSD Cable
The Waterproof HSD (High-Speed Data) Cable is specifically crafted for automotive purposes that call for high-speed data transmission coupled with consistent impedance control. Its interconnect system is dedicated to ensuring top-notch performance by averting crosstalk and external interference via the utilization of low-voltage differential signaling (LVDS).
Equipped with a 100-ohm fully shielded twisted-pair four-core cable, this waterproof HSD cable proves to be an excellent choice for operation in demanding environments while upholding data integrity with absolute reliability.
It is purpose-built to meet the requirements of automotive applications like LVDS cameras, USB, and IEEE 1394. The cable provides mechanical keying, secure latching, color-coded selections, and a compact form factor that aligns with global automotive standards.
Features:
- Secure Connection: Primary and secondary locking mechanisms ensure a stable and reliable connection.
- Stable Signal Transmission: Crimp connections provide consistent and secure signal transfer.
- Enhanced Durability: Plastic domes protect plug pins from damage, extending the connector’s lifespan.
- Strong Cable Retention: High retention force keeps the cable firmly in place, preventing disconnections.
- Misconnection Prevention: Multiple keying options enhance coding efficiency and ensure correct connections.
- Waterproof & Robust Design: Built to withstand harsh environments for reliable long-term performance.
Technical Parameters:
- Impedance: 100Ω
- Frequency range (depends on cable type): DC to 6 GHz
- Outer contact resistance: ≤ 7.5 mΩ
- Test voltage: ≤ 250 V rms
- Working voltage: ≤ 60 V rms
- Mating cycles (waterproof): ≥ 5
- Temperature range: -40°C to +105°C
Applications:
- Automotive Electronics: Enable navigation, entertainment, and safety in modern vehicles.
- Telecom Electronics: Support efficient communication in radio base stations.
- Digital Infotainment: Offers music, video, and enhanced user experience.
- Digital Symmetrical Networks: Ensure high-speed, reliable data transfer.
- USB: Evolved from USB 1.0 to 3.0 for fast, versatile connectivity.
- LVDS: High-speed data transmission for displays and cameras.
- Ethernet: Enables device communication over LAN and the internet.
- IEEE 1394 (Firewire): High-speed interface for cameras, drives, and audio.
- GVIF: Transmits high-quality video in automotive displays and cameras.
HSD Coding:
Customization:
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
